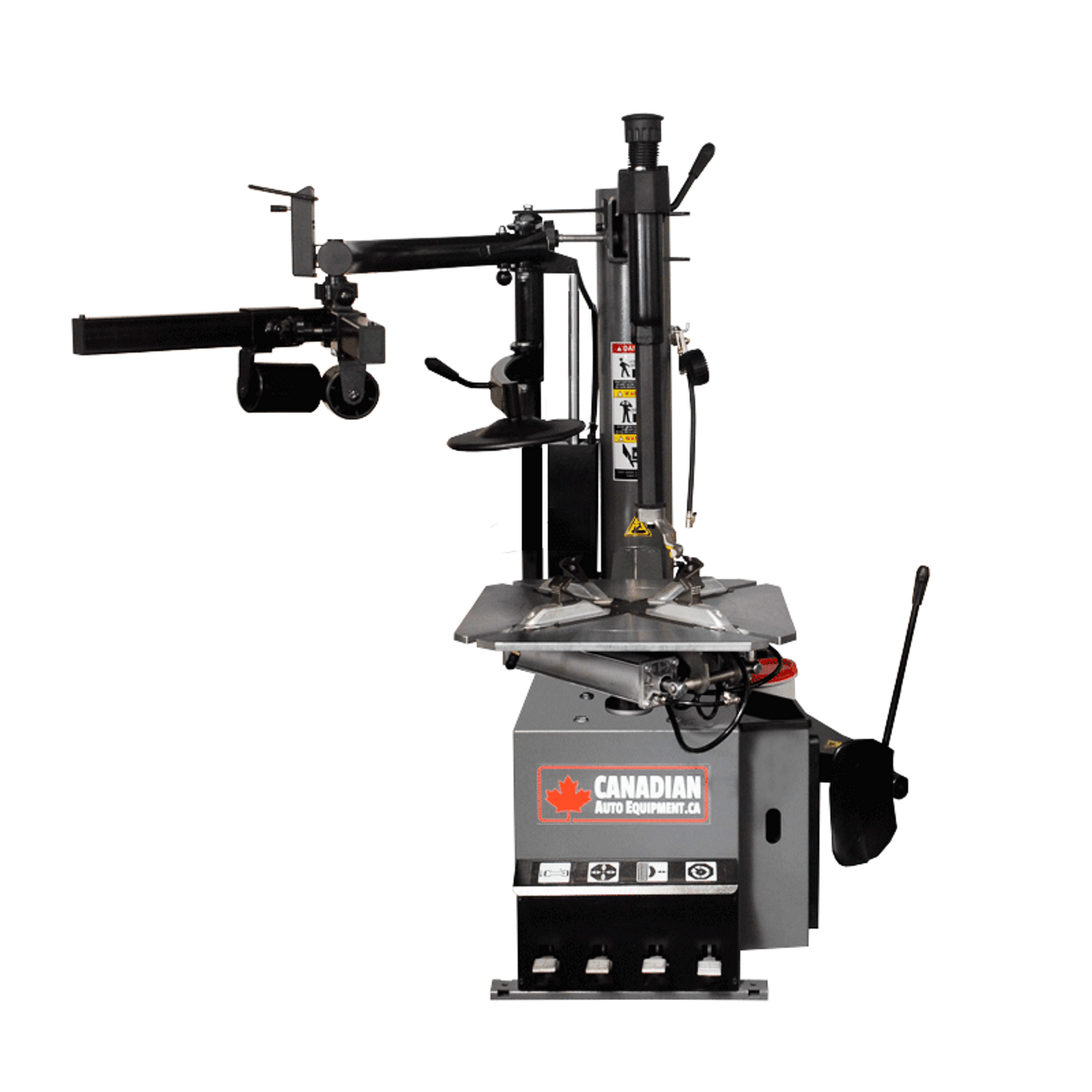

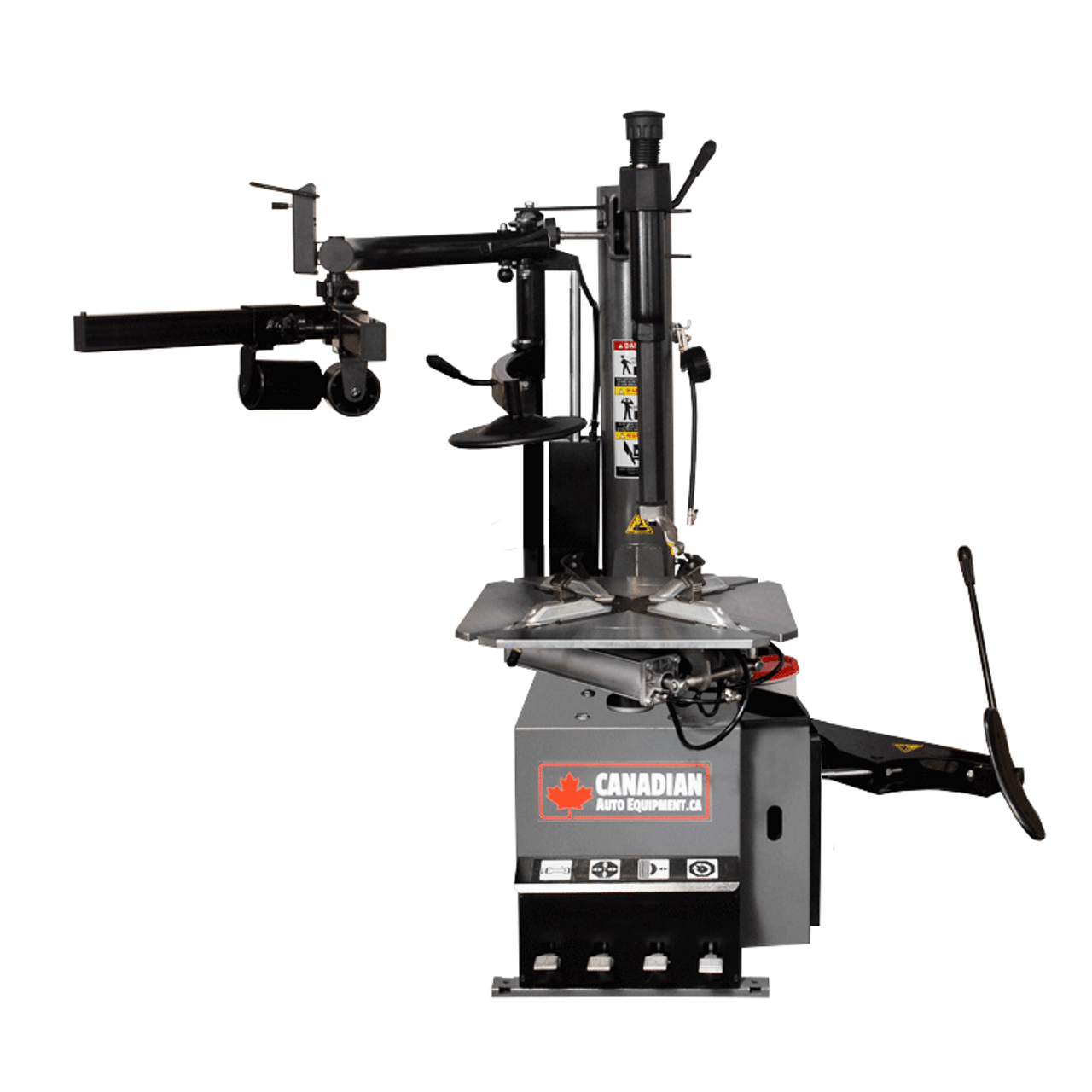

CAE-2765LH Tire Changer with Left Hand Assist & CAE-3226 Wheel Balancer with Automatic 3D Entry

• Professional tire changer with pneumatic lock swing arm.
• Integrated bead blasting system for quickly seating difficult tire beads.
• Electric/pneumatic wheel clamp system with tank integrated into the column.
• Cylindrical vertical tower design featuring high torsional rigidity.
• Includes Left Hand Assist Arm for additional tire service support.
• Accommodates tires up to 43" in diameter.
• Handles rim sizes from 10" - 26".
• Powerful 5,900 LB pneumatic bead breaker.
• Swing horizontal arm with Ø41mm hexagon shaft.
• Mechanical locking and vertical adjustment of mounting arm.
• Mounting head includes interchangeable plastic inserts for rim protection.
• Self-centering four-jaw clamping system with double pneumatic cylinder.
• Powerful clamping cylinders provide consistent wheel positioning.
• Clockwise and counterclockwise turntable rotation powered by electric motor.
• Removable pedal assembly for easier servicing.
• Integrated lubrication filter and pressure regulator.
• Protection kit for bead breaker shoe, demounting head, and clamping jaws included.
• Integrated bead blasting tank.

• ATV Adapters
• Motorcycle Adapters
• Tire Tool (20" or 24")
• Plastic Protector (Duck) Head
• Manual Bead Roller Arm
• Left Hand Press Arm (Included)
• Right Hand Press Arm

• Automatic positioning identifies where weights should be applied for faster and more accurate balancing.
• Heavy-duty steel cabinet construction designed for professional shop environments.
• Automatic start/stop operation when the protective hood is lowered or raised.
• Automatic and pedal-operated braking system for improved control.
• Self-calibration system helps maintain accuracy and reduce downtime.
• Rapid optimization (OPT) program improves balancing efficiency.
• Static and dynamic balancing modes for a wide range of wheel applications.
• Self-diagnosis feature helps identify potential issues quickly.
• Display settings available in grams or ounces, and millimeters or inches.
• Automatic data entry simplifies wheel setup and operation.
• EALU balance function for advanced alloy wheel balancing.
• First-time positioning brake for easier weight placement.
• Automatic 3D entry measures distance, diameter, and width for improved accuracy.

The CAE-3226WB Wheel Balancer combines advanced technology with simple operation, making it ideal for professional automotive shops. Its automatic 3D measurement, self-calibration, and weight positioning features reduce setup time while improving balancing accuracy.

Designed for dependable daily use, the CAE-3226WB provides the precision and efficiency required to handle a wide range of passenger vehicle and light truck wheel applications.
