CAE-8000ETW 4 Post Lift Extra Tall and Wide
SKU:
CAE-8000ETW
Condition:
New
MSRP:
C$6,495.00
C$6,495.00
C$5,195.00
(You save
C$1,300.00
)
The Canadian Auto Equipment CAE-8000 ETW (Extra Tall and Wide) 4 Post Storage Lift is designed for maximum vehicle storage capacity while providing a safe, stable, and easy-to-use lifting solution. Featuring the innovative lock ladder system, the CAE-8000 ETW provides multiple adjustable locking positions, allowing operators to achieve the ideal runway height for their application. Unlike older welded lock systems, the adjustable lock ladder design offers improved flexibility, safety, and convenience for vehicle storage.
- 8,000 LB lifting capacity for vehicle storage and parking applications.
- Extra tall and wide design provides additional clearance for larger vehicles.
- Adjustable lock ladder system provides multiple runway locking positions.
- Two-position locking mechanism for added safety.
- Single-point lock release system for convenient operation.
- No floor anchoring required for standard installations.
- Flow restrictor valve for controlled lowering operation.
- Zerk grease fittings for easier maintenance.
- Easy installation designed for a two-person setup.
- Optional caster wheel kit allows easier portability.
- Optional jack tray available for vehicle servicing while lifted.
CAE-8000 ETW Technical Specifications
| Specification | Details |
| Model | CAE-8000 ETW (8000 LB 4 Post Extra Tall and Wide) |
| Capacity | 8,000 LB |
| Shipping Weight | 1,900 LB |
| Oil Requirements | 3-5 Gallons AW32 Hydraulic Oil |
| Power Unit / Motor | 110 Volt |
| Lifting Height (Top of Runway) | 84 1/2" |
| Clearance Under Runways (Top Lock) | 79" |
| Overall Length With Approach Ramps | 207" |
| Overall Length Without Approach Ramps | 175" |
| Overall Width Without Motor | 108" |
| Overall Width With Motor | 116 1/2" |
| Column Height | 97 1/2" |
| Approach Ramp Length | 36 3/4" |
| Runway Width | 20" |
| Runway Length | 165 1/2" |
| Runway Thickness | 4 1/2" |
| Distance Between Runways | 38" |
| Column Size | 6 1/4" x 3 3/8" |
| Distance Between Columns | 98" |
| Length Between Columns | 157 1/2" |
| Column Base Size | 9 5/8" x 11 1/2" |
| Drive Through Clearance (Outside to Outside of Tire) | 84" |
| Cable Diameter | 0.350" |
| Gauge of Steel | 6 Gauge (0.1875" / 3/16" / 4.75mm) |
| Locking Heights / Positions (+/- 2") | 24", 30", 36", 42", 48", 54", 60", 66", 72", 78", 84" |
Safety & Design Features
- Adjustable lock ladder system provides precise runway positioning and improved safety compared to fixed welded locking systems.
- Multiple locking heights allow operators to customize vehicle clearance requirements.
- Two-position locking mechanism provides additional security while the lift is raised.
- Single-point lock release allows quick and convenient lowering operation.
- Flow restrictor valve helps provide controlled and safe lowering speed.
- Zerk grease fittings simplify regular maintenance and lubrication.
- Heavy-duty steel construction designed for long-term durability.
Optional Accessories
- Easy Roll Caster Wheel Kit for improved portability.
- Jack Tray for servicing vehicles while positioned on the lift.
Benefits of Owning a 4 Post Car Lift
A four post lift from Canadian Auto Equipment provides a convenient and practical solution for vehicle storage, maintenance, and garage organization. Unlike a two post lift, four post lifts allow vehicles to be driven directly onto the runways, making loading and positioning simple without the need to manually position lifting arms.
Four post lifts are especially beneficial for storing multiple vehicles, collector cars, trucks, and seasonal vehicles. The elevated platform creates additional parking space while keeping vehicles protected and organized. Canadian Auto Equipment four post lifts include drip trays to help protect vehicles underneath from fluids or debris from the vehicle above.
For customers looking to perform maintenance while the vehicle is elevated, optional jack trays are available for use with bottle jacks. The standard 110 volt motor system allows for easy installation without requiring specialized electrical wiring, making the CAE-8000 ETW an excellent choice for residential garages, workshops, and professional storage applications.
Please note: If the CAE 4 Post Storage Lift is not anchored to the floor, some movement may occur during operation. This movement does not compromise the structural stability or integrity of the lift.
At Canadian Auto Equipment.ca, our knowledgeable and dedicated Customer Care team is ready to assist you every step of the way. Contact us today and let us help you find the right vehicle lift solution for your garage or shop.
Returns Policy
Click Here to View Returns & Warranty PolicyShipping
Click Here to View Shipping InformationDocuments
CAE-8000 ETW_Manual.pdf
|
Click for instant lease options and simply click the payment option of your choice to submit for online credit approval. |
|
|
Related Products

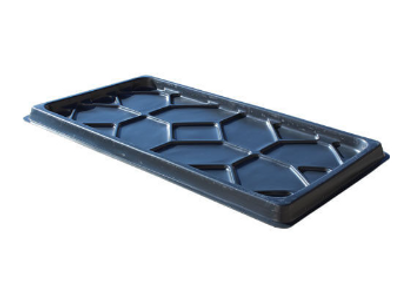

CAE - 8000lb 4 Post Lift Drip Trays
