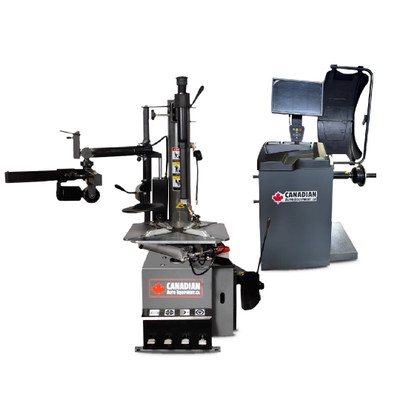

CAE-2725 Tire Changer with Left Hand Assist & CAE-3226 Wheel Balancer with Automatic 3D Entry

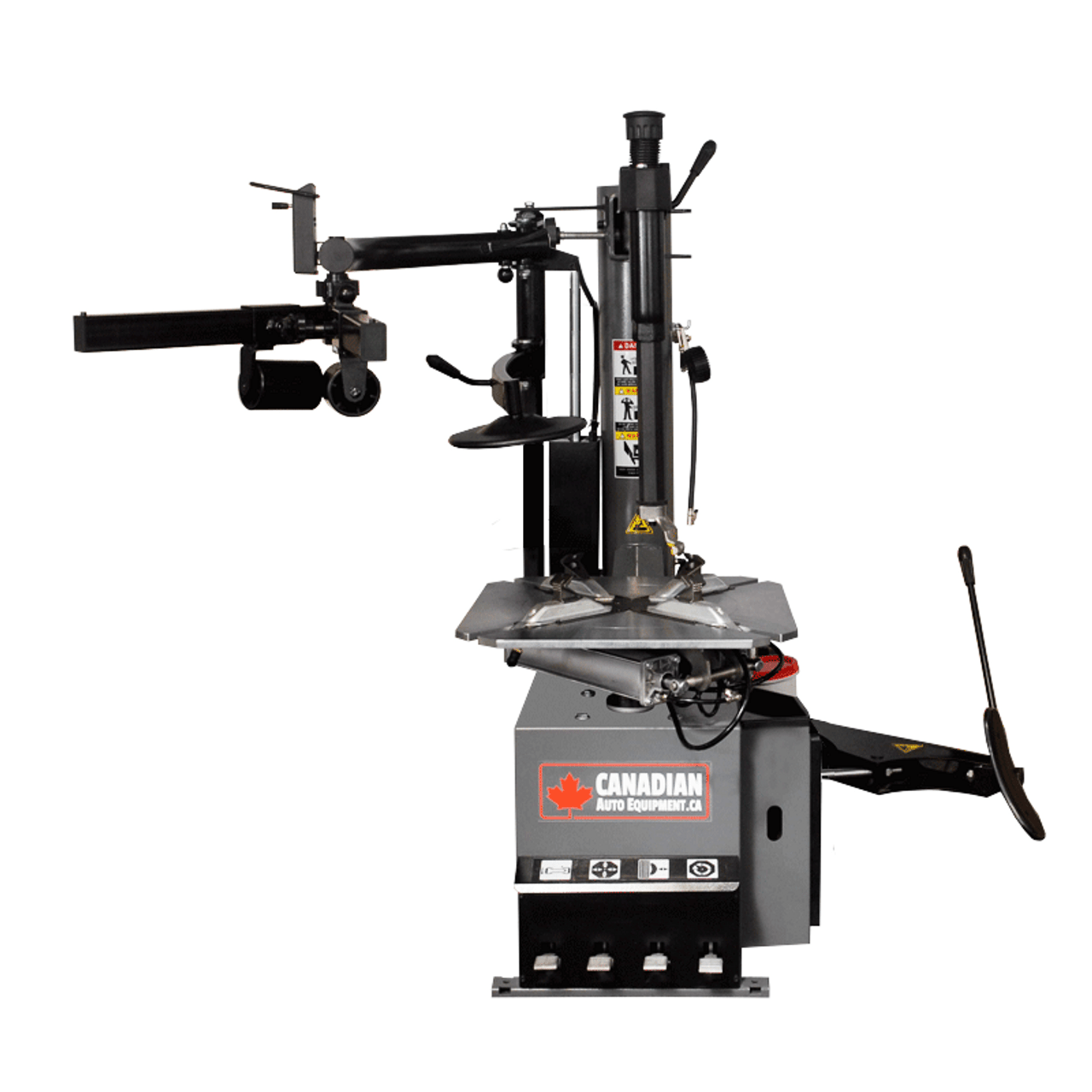

CAE-2725LH TC Tire Changer with Bead Blaster, Electric/Pneumatic Wheel Clamp (with tank integrated into the column), cylindrical vertical tower featuring high torsional rigidity, and Left Hand Assist Arm. The CAE-2725LH tire changer accommodates tire diameters up to 43" and rims up to 26". Equipped with a powerful 5,900 lb pneumatic bead breaker, this tire changer is designed to handle demanding professional tire service applications.
CAE-3226WB Wheel Balancer is the top-of-the-line model in Canadian Auto Equipment's computer wheel balancer lineup. Featuring automatic 3D Entry technology, exceptional accuracy, and dependable performance, the CAE-3226WB provides a simple plug-and-play operation while delivering advanced balancing capabilities.
With built-in self-diagnosis technology, automatic weight positioning, self-calibration, automatic data entry, and static/dynamic balancing programs, the CAE-3226WB eliminates guesswork and provides professional results. Capable of balancing wheels up to 143 lbs, it is the ideal choice for busy automotive shops.
Key Features
- Integrated bead blasting system for quick seating of stubborn tire beads
- Electric/pneumatic wheel clamping system with integrated bead blast tank
- Cylindrical vertical tower designed for increased torsional rigidity
- Left Hand Assist Arm included for easier tire mounting and demounting
- Accommodates tires up to 43" in diameter
- Handles rims from 10" to 26"
- Powerful 5,900 lb pneumatic bead breaker
- Self-centering four-jaw clamping system for secure wheel positioning

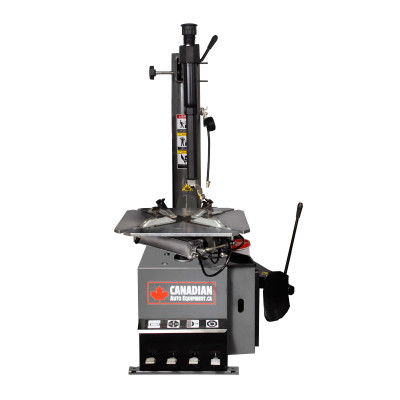

The Canadian Auto Equipment CAE-2725TC features a powerful bead seating system capable of delivering a burst of air between the tire and rim to quickly seat difficult beads. The machine also features three-position jaw clamps, swing arm operation, and professional-grade components designed for reliability and ease of use.
Features & Benefits
- Swing horizontal arm with Ø41mm hexagon shaft
- Mechanical locking and vertical adjustment of mounting arm
- Tool head with interchangeable plastic inserts for rim protection
- Self-centering four-jaw system with double pneumatic cylinders for secure clamping
- Powerful clamping cylinders provide consistent pressure across all rim types
- Clockwise and counter-clockwise turntable rotation powered by electric motor
- Removable pedal assembly for easier servicing
- Tire inflation unit mounted on column with inflation tube, pressure gauge, and pressure release button
- Protection kit included for bead breaker shoe, demounting head, and clamping jaws
- Integrated lubrication filter and pressure regulator
- Integrated bead blasting tank
- Includes Left Assist Arm
| Model | CAE-2725TC |
| Rims | Steel, Aluminum, Alloy |
| External Locking Rim Dimension | 12" - 24" |
| Internal Locking Rim Dimension | 10" - 26" |
| Bead Blaster | Yes |
| Maximum Tire Diameter | 43" |
| Operating Voltage | 110V 1Ph, 15 Amps |
| Maximum Wheel Width (Bead Breaker) | 3" - 16" |
| Air Pressure | 100 - 140 PSI |
| Maximum Inlet Pressure | 140 PSI* |
| Shipping Weight | 640 lbs Crate |
| Table Motor | 1 HP |
| Bead Breaker | Pneumatic, 5,900 lbs force |
| Oiler, Filter, Regulator | Included |
| Soap Dispenser | Included |
| Warranty | 1 Year Limited |
| 4 Black Plastic Rim Protectors | Included |
*Inlet pressure is the amount of air pressure supplied by your air compressor.
- ATV Adapters
- Motorcycle Adapters
- Tire Tool (20" or 24")
- Plastic Protector (Duck) Head
- Manual Bead Roller Arm
- Left Hand Press Arm INCLUDED
- Right Hand Press Arm
The CAE-3226WB Wheel Balancer is Canadian Auto Equipment's premium computer wheel balancer, offering advanced technology, exceptional accuracy, and dependable performance. Featuring automatic 3D Entry technology, the CAE-3226WB automatically measures distance, diameter, and width for faster and more precise balancing.
Designed with professional shops in mind, the CAE-3226WB combines ease of operation with advanced features including automatic weight positioning, self-calibration, self-diagnosis, automatic data entry, and static/dynamic balancing programs. Its simple plug-and-play design allows technicians to achieve accurate results without unnecessary downtime.
Features & Benefits
- Automatic positioning for weight application
- Heavy-duty steel cabinet construction
- Automatic start/stop when hood is lowered or raised
- Automatic and pedal-operated brake system
- Self-calibration capability
- Rapid optimization (OPT) function
- Static and dynamic balancing programs
- Built-in self-diagnosis system
- Display options in grams or ounces and millimeters or inches
- Automatic data entry
- EALU balance function
- First-time positioning brake
- Automatic 3D Entry (Distance, Diameter & Width)
| Model | CAE-3226 WB |
| Maximum Tire Diameter | 43" |
| Rim Sizes (Cars & Light Trucks) | 10" - 36" |
| Rim Width | 1 1/2" - 20" |
| Shaft Size | 40mm |
| Maximum Wheel Weight | 143 lbs |
| Balancing Speed | 150 RPM |
| Automatic Data Entry | Yes |
| EALU Balance Function | Yes |
| First-Time Positioning Brake | Yes |
| Truck Adapter Set | Optional |
| Warranty | 1 Year Limited |
| Shipping Weight | 275 lbs |
| Power Supply | 110V 1Ph |
| Motor | 1/4 HP |
| Display | Standard or Metric |
| Accuracy | +/- 1 g |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
Returns Policy
Click Here to View Returns & Warranty PolicyShipping
Click Here to View Shipping Information
CAE_2765_&_2725_Tire_Changer_Manual.pdf
|
Click for instant lease options and simply click the payment option of your choice to submit for online credit approval. |
|
|
