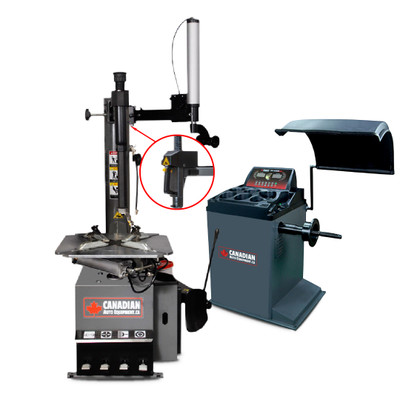

CAE-2725EZ2 Tire Changer with EZ Right Hand Assist & CAE-3226 Wheel Balancer with Automatic 3D Entry

• Complete tire changer and wheel balancer package.
• CAE-2725EZ Tire Changer with Right Hand Assist Arm included.
• CAE-3226WB professional computer wheel balancer included.
• 43" maximum tire diameter capability.
• Handles rim sizes from 10" - 26".
• 5,900 LB pneumatic bead breaker for powerful bead seating.
• Automatic 3D wheel measurement and balancing programs.
• Ideal setup for professional tire shops and automotive service facilities.

• Integrated bead blasting system quickly seats difficult tire beads.
• Electric/pneumatic wheel clamp system with tank integrated into the column.
• Cylindrical vertical tower design provides high torsional rigidity.
• Includes Right Hand Assist Arm.
• Swing horizontal arm with Ø41mm hexagon shaft.
• Mechanical locking and vertical adjustment of mounting arm.
• Mounting head includes interchangeable plastic inserts for rim protection.
• Self-centering four-jaw clamping system with double pneumatic cylinder.
• Powerful clamping cylinders provide uniform clamping pressure.
• Clockwise and counterclockwise turntable rotation powered by electric motor.
• Removable pedal assembly allows easier servicing.
• Integrated lubrication filter and pressure regulator.
• Protection kit for bead breaker shoe, demounting head, and clamping jaws included.
• Integrated bead blasting tank.

• ATV Adapters
• Motorcycle Adapters
• Tire Tool (20" or 24")
• Plastic Protector (Duck) Head
• Manual Bead Roller Arm
• Left Hand Press Arm
• Right Hand Press Arm

• Automatic positioning identifies where weights should be applied.
• Heavy-duty steel cabinet construction.
• Automatic start/stop operation when hood is lowered or raised.
• Automatic and pedal-operated braking system.
• Self-calibration system.
• Rapid optimization (OPT) program.
• Static and dynamic balancing modes.
• Self-diagnosis function.
• Display settings available in grams or ounces and millimeters or inches.
• Automatic data entry.
• EALU balance function.
• First-time positioning brake.
• Automatic 3D entry measuring distance, diameter, and width.

The CAE-2725EZ Tire Changer and CAE-3226WB Wheel Balancer package provides professional tire service capability in one complete setup. The combination of powerful bead seating, reliable wheel clamping, assist arm support, and precision balancing technology helps shops improve efficiency and reduce service time.

The CAE-3226WB provides advanced balancing technology including automatic 3D entry, self-calibration, automatic positioning, and static/dynamic balancing programs in a simple plug-and-play design.
