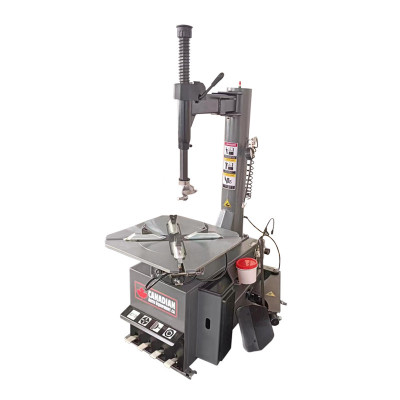

CAE-2765TC Tire Changer with Pneumatic Lock Swing arm, Bead Blaster (110V/60HZ/1PH)

CAE-2765TC Tire Changer with Pneumatic Lock Swing arm, Bead Blaster (110V/60HZ/1PH)

SKU:

CAE-2765TC

Condition:

New

Shipping:

Calculated at Checkout

MSRP: C$2,649.00

C$4,195.00

C$2,195.00

(You save C$454.00 )

Description
Warranty Information
Shipping & Returns
Documents
Commercial Financing

Description

CAE-2765 Tire Changer with Pneumatic Lock Swing Arm & Bead Blaster

The Canadian Auto Equipment CAE-2765TC Tire Changer is a professional-grade tire service solution designed for shops and enthusiasts looking for reliable performance, ease of operation, and versatility. Featuring a pneumatic locking swing arm, integrated bead blasting tank, and electric/pneumatic wheel clamping system, the CAE-2765TC makes servicing a wide range of wheels faster and easier.

Equipped with a powerful bead seating system capable of delivering a strong burst of air between the tire and rim, this tire changer quickly seats stubborn beads while the 3-position jaw clamps and swing arm provide secure handling of various wheel types.

Key Features

Pneumatic lock swing arm with Ø41mm hexagon shaft
Electric/Pneumatic wheel clamp system with integrated bead blasting tank
Self-centering four-jaw clamping system with double pneumatic cylinders
Secure clamping pressure for steel, aluminum, and alloy rims
Mechanical locking and vertical adjustment of mounting arm
Mounting head with interchangeable plastic inserts for rim protection
Clockwise and counterclockwise turntable rotation powered by electric motor
Removable pedal assembly for easier servicing
Column-mounted tire inflation unit with pressure gauge and release button
Complete lubrication filter and pressure regulator system
Integrated bead blasting tank for difficult bead seating applications
Includes 4 black plastic rim protectors

Specifications

Specification	CAE-2765TC
Model	CAE-2765TC
Rims	Steel, Aluminum, Alloy
External Locking Rim Dimension	12"-24"
Internal Locking Rim Dimension	10"-26"
Bead Blaster	Yes
Maximum Tire Diameter	43"
Operating Voltage	110V 1Ph, 15 Amps
Maximum Wheel Width (Bead Breaker)	3"-16"
Air Pressure	100-140 PSI
Maximum Inlet Pressure	140 PSI*
Shipping Weight	640 lbs. (Crate: 1.48" x 0.36" x 0.54")
Table Motor	1 HP
Bead Breaker	Pneumatic, 5,900 lbs. force
Oiler, Filter, Regulator	Included
Soap Dispenser	Included
Warranty	1 Year Limited
4 Black Plastic Rim Protectors	Included

*Inlet pressure is the amount of air pressure supplied by your air compressor.

Optional Accessories

ATV Adapters
Motorcycle Adapters
Tire Tool (20" or 24")
Plastic Protector (Duck) Head
Manual Bead Roller Arm
Left Hand Press Arm
Right Hand Press Arm

Benefits of Owning a Tire Changer and Wheel Balancer

Tire changers and wheel balancers are essential pieces of equipment for any automotive repair shop or garage owner looking to provide complete tire services. A tire changer allows technicians to efficiently remove and install tires, while a wheel balancer ensures proper weight distribution for a smoother and safer driving experience.

Investing in your own tire service equipment allows you to save money, increase service offerings, and provide additional value to your customers. With Canadian Auto Equipment's tire changers and wheel balancers, shops can expand their capabilities without the high cost associated with premium equipment brands.

Successful repair shops are always looking for ways to attract new customers and expand their services. Adding a CAE tire changer and wheel balancer allows you to offer professional wheel services while keeping quality and affordability at the forefront.
