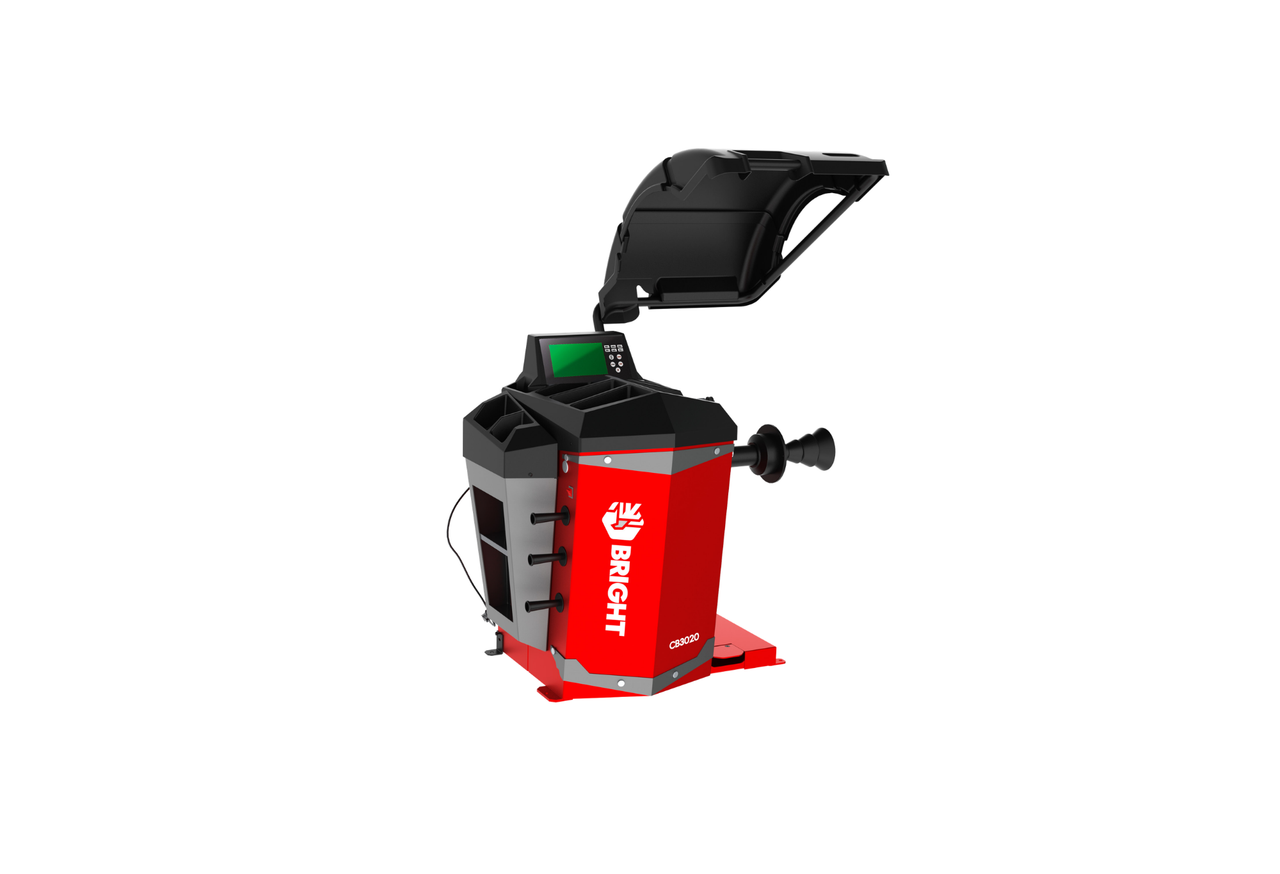

The Bright CB3010B Wheel Balancer is a premium balancing machine designed with advanced software, intuitive operation, and professional-grade performance. Featuring a large 10" LCD display, intelligent balancing modes, and automatic measurement capabilities, the CB3010B delivers fast, accurate, and efficient wheel balancing for modern tire service operations.
Key Features
- Advanced software system provides simple operation and improved workflow efficiency.
- Large 10" LCD display delivers a clear and easy-to-read interface.
- Automatic two-value input reduces setup time and improves balancing efficiency.
- 40mm diameter balancing shaft is compatible with standard wheel balancer accessories.
- Intelligent balancing modes include standard dynamic balancing and aluminum alloy (ALS2) programs.
- Six o'clock laser positioning system provides fast and accurate wheel weight placement.
- LED illumination improves visibility during wheel servicing.
- Foot brake system provides secure wheel positioning for accurate weight installation.
- Automatic calibration reminder helps maintain consistent balancing accuracy.
- Designed for professional shops seeking reliable performance, speed, and ease of use.
Technical Specifications
| Specification |
Details |
| Rim Diameter |
10" - 24" |
| Maximum Wheel Weight |
70 kg |
| Maximum Wheel Diameter |
1000 mm |
| Rim Width |
1.5" - 20" |
| Precision |
±1g |
| Motor Power |
0.25 kW |
| Power Supply |
100/230V 1 Phase |
| Rotation Speed |
200 RPM |
| Balancing Time |
10 seconds |
| Second Test Accuracy |
≤5g |
| Machine Dimensions |
1300 × 1150 × 1700 mm |
