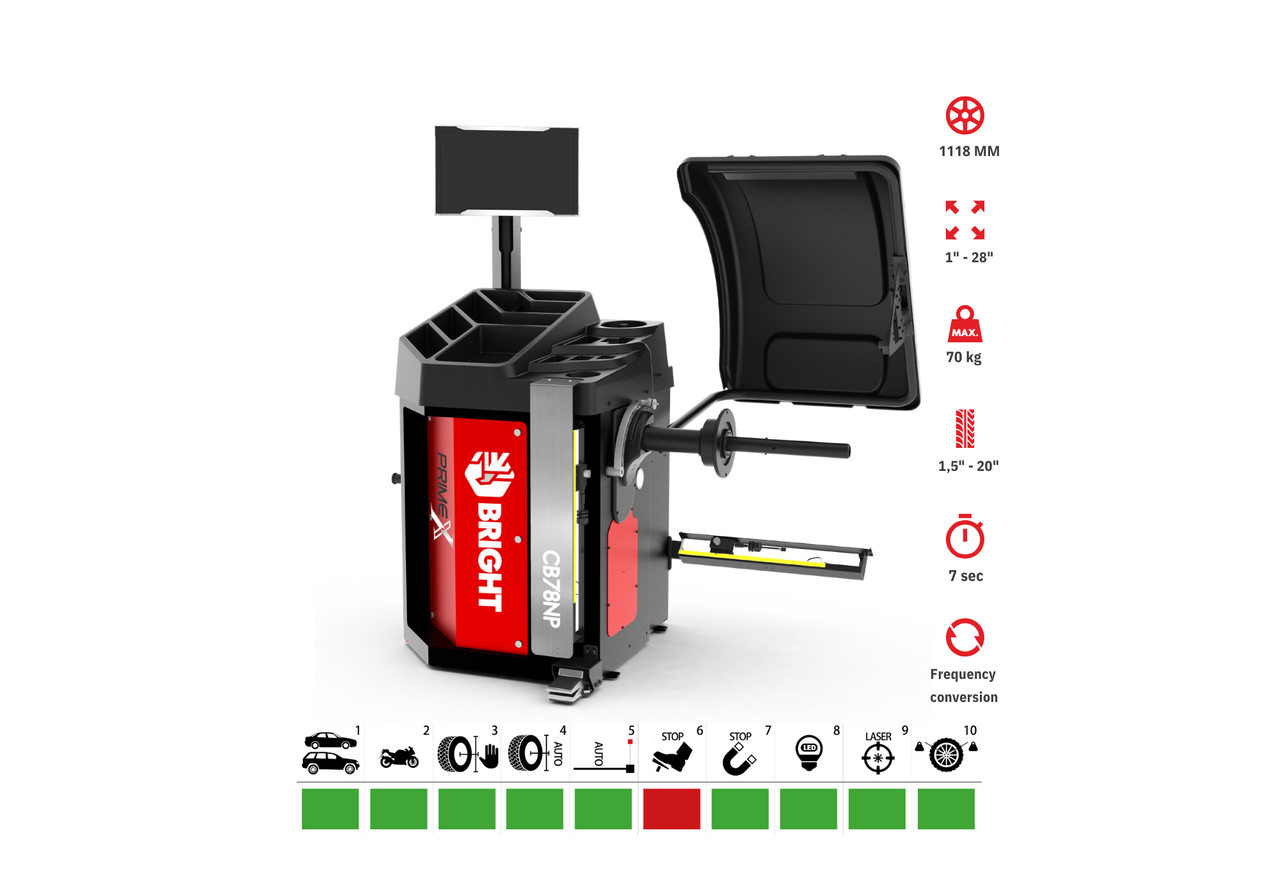

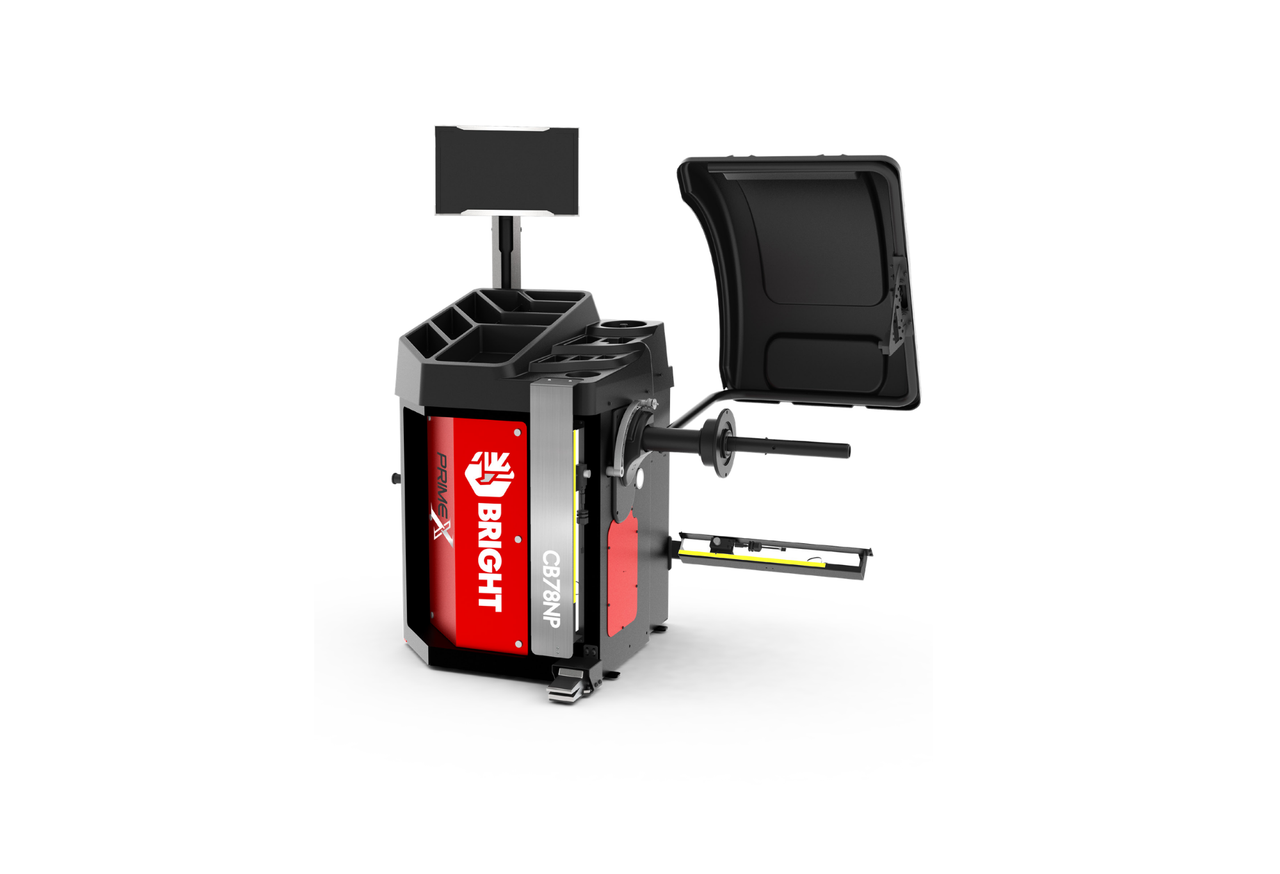

Bright CB78NP Wheel Balancer

SKU:

BRT-CB78NP

Shipping:

Calculated at Checkout

MSRP: C$12,455.00

C$12,455.00

C$8,895.00

(You save C$3,560.00 )

Description
Shipping & Returns
Commercial Financing

Description

The Bright CB78NP Wheel Balancer is a high-performance balancing solution designed for professional tire shops requiring precision, efficiency, and ease of operation. Featuring advanced frequency conversion technology, sonar-based measurement systems, and Italian-developed software, the CB78NP delivers accurate wheel diagnostics, automatic data input, and exceptional balancing performance for a wide range of vehicle applications.

Key Features

Advanced frequency conversion processing system provides 100% accurate positioning and smooth operation.
Three sonar non-contact sensors provide precise tire diagnostics, tread movement analysis, and automatic tire width measurement.
Italian software interface simplifies operation with automatic tire data input and intelligent balancing functions.
Automatic unbalance optimization (OPT) improves balancing accuracy while reducing required wheel weights.
Supports custom aluminum wheel patterns and automatic balanced lead block calculations.
19" adjustable touchscreen display allows convenient operation from multiple viewing angles.
Dedicated motorcycle mode with specialized fixture compatibility for motorcycle wheel balancing.
Transverse and longitudinal sonar sensors accurately measure tire width and tread movement curves.
Inverter-driven motor provides low-noise operation, energy efficiency, and precise positioning.
Intelligent LED lighting system improves visibility during wheel installation and balancing.
Dynamic balancing modes include standard and aluminum alloy programs for various wheel types.
Pneumatic locking shaft provides quick, secure wheel mounting for improved efficiency.
Spindle joint surface and locking threads treated with ultrasonic hardening technology for increased durability.
Six o’clock laser positioning system ensures accurate wheel weight placement.

Technical Specifications

Specification	Details
Rim Diameter	1" - 28"
Maximum Wheel Weight	70 kg
Maximum Wheel Diameter	1118 mm
Rim Width	1.5" - 20"
Precision	±1g
Motor Power	0.37 kW
Power Supply	100/230V 1 Phase
Rotation Speed	140 RPM
Balancing Time	7 seconds
Second Test Accuracy	≤5g
Machine Dimensions	1390 × 980 × 1470 mm
Packing Dimensions	1400 × 880 × 1170 mm
Net Weight	154 kg
Gross Weight	192 kg
