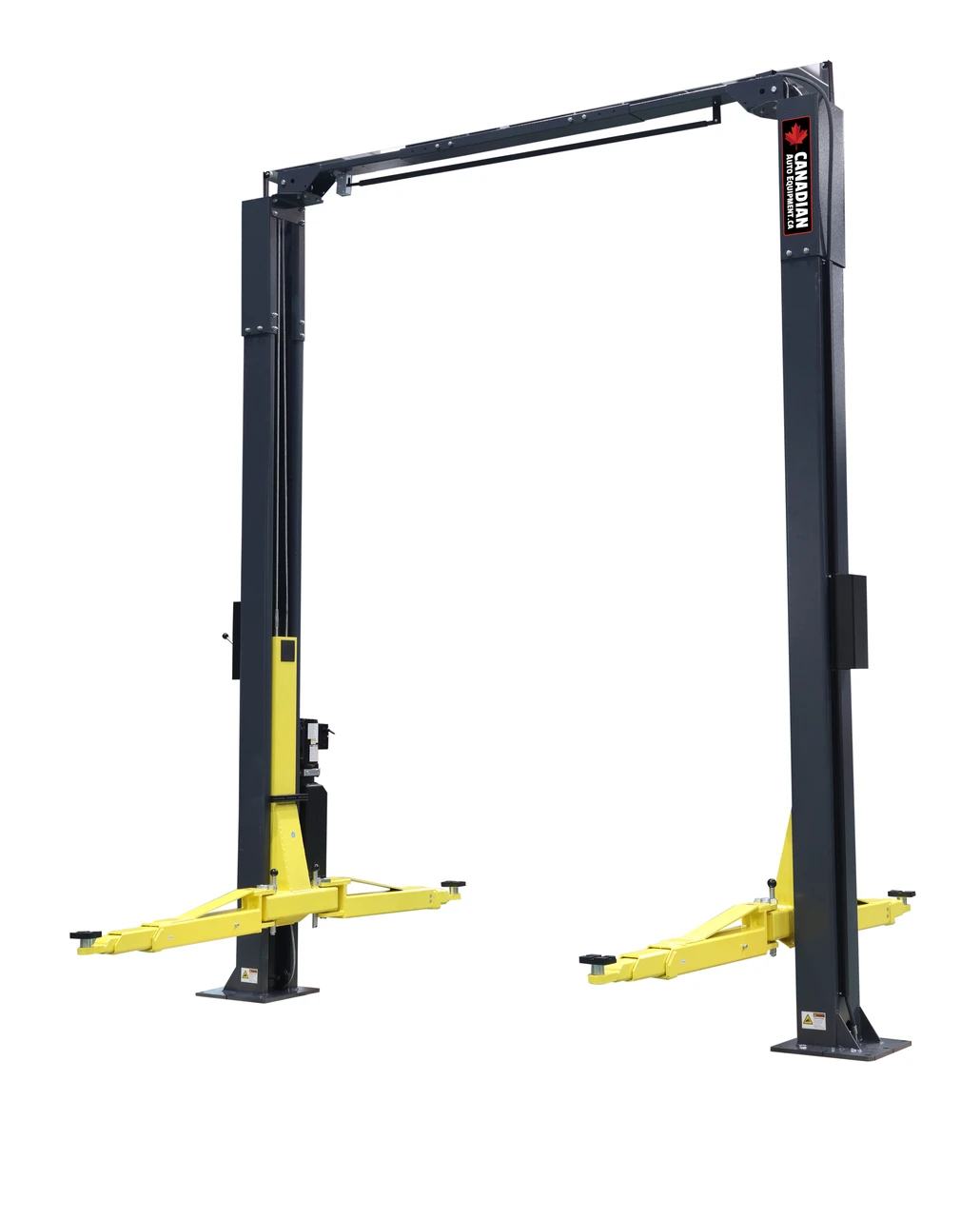

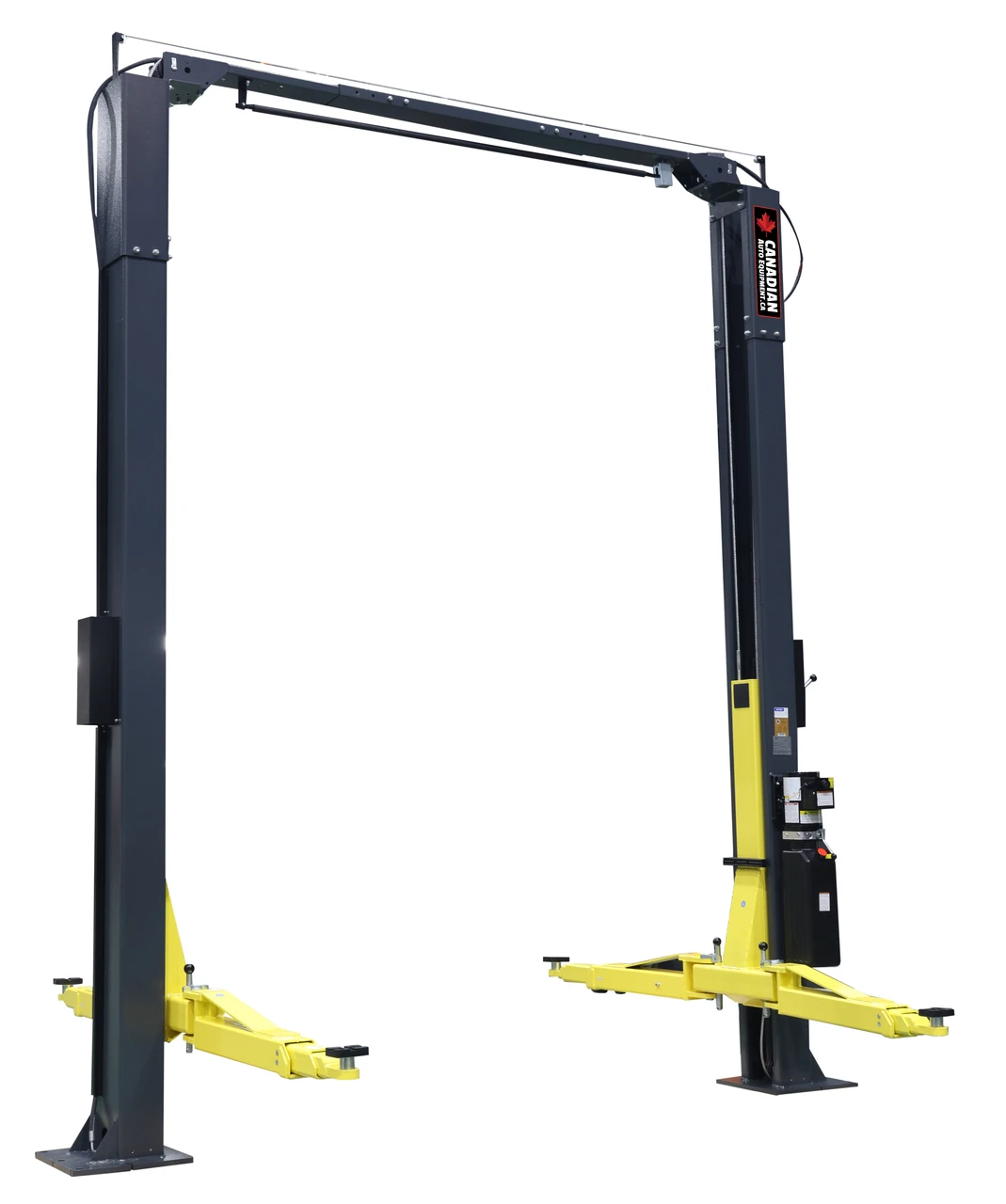

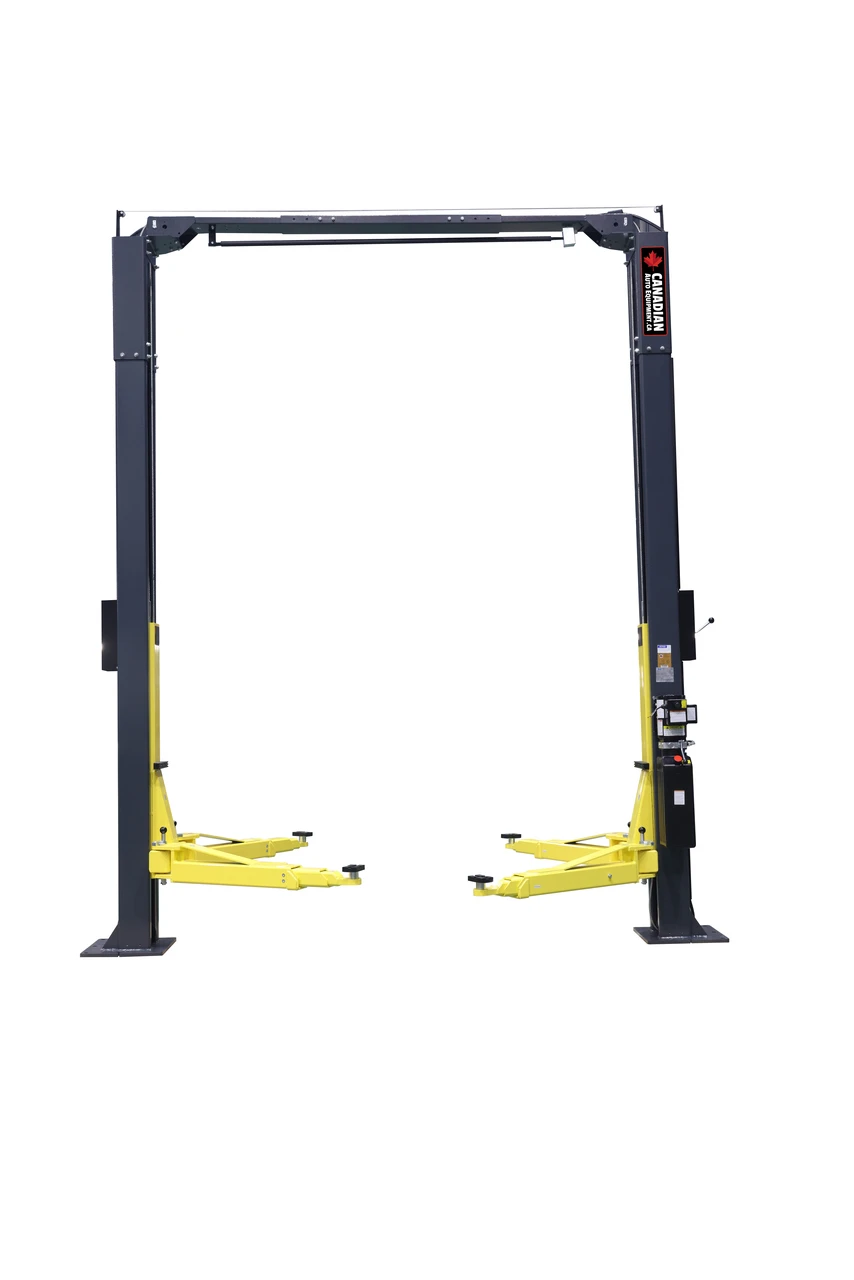

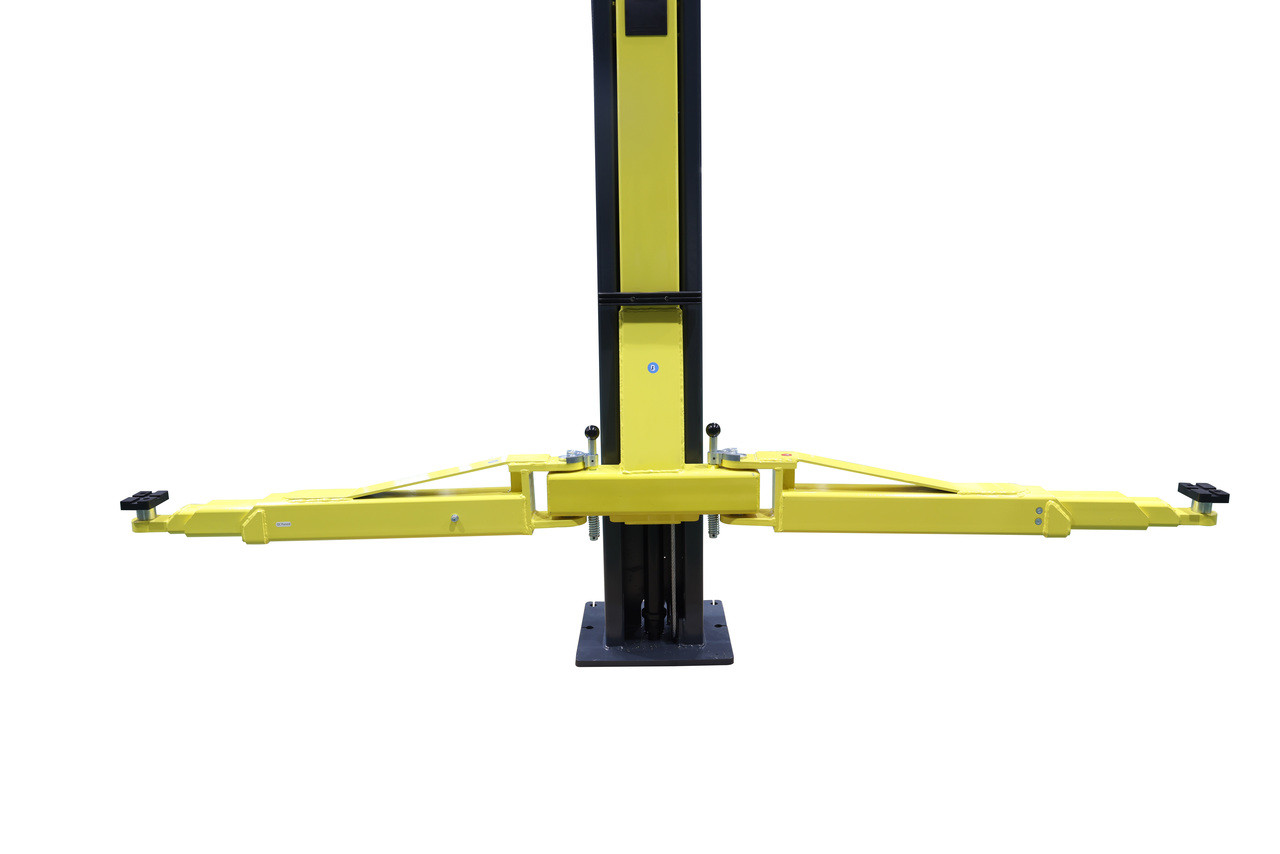

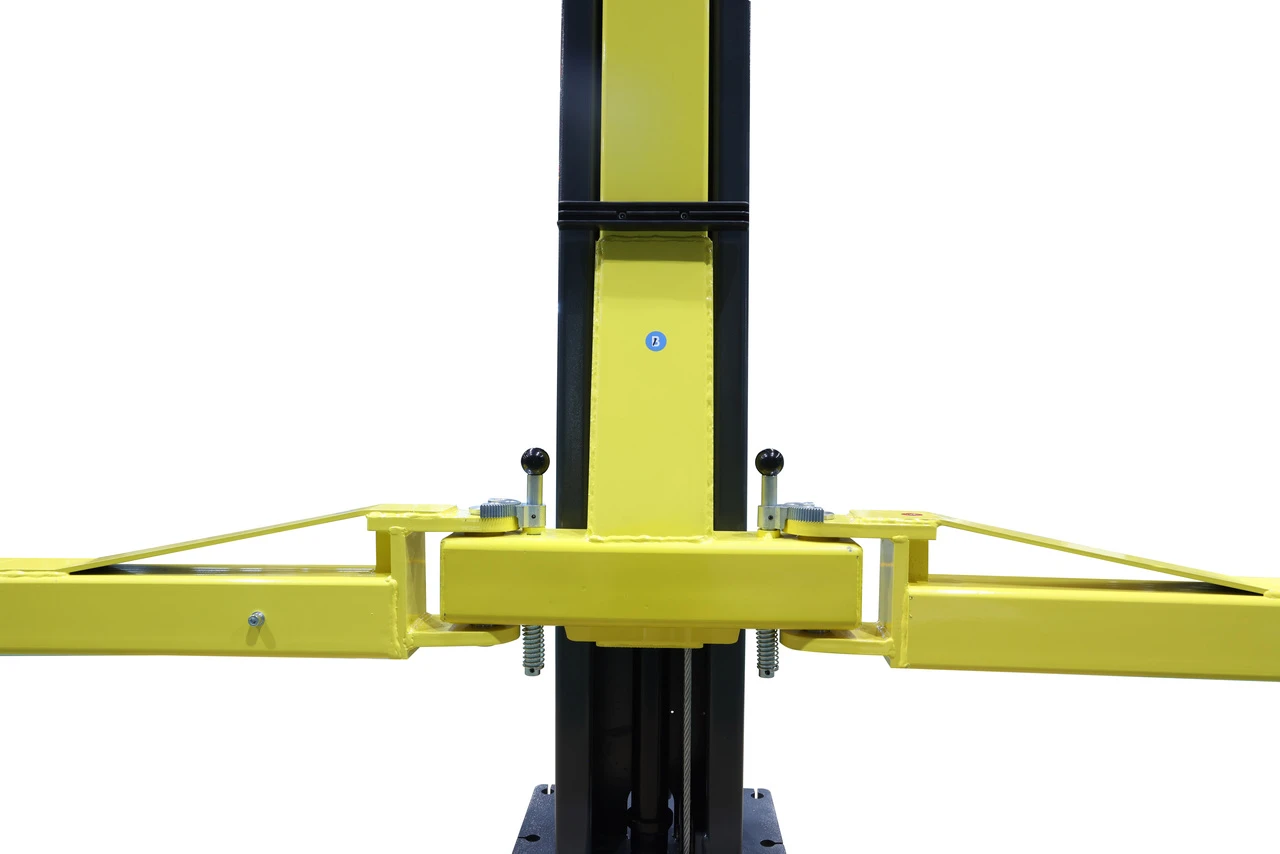

2 Post Overhead ALI Extended Height Symmetric Car Lift- CAE10K-2OH-3S3-T2OH-2

TECHNICAL SPECIFICATIONS

Our ALI Certified Symmetric 2-Post Overhead CAE10K-2OH-3S3 lift, with a 10,000 lb. lifting capacity, meets the recognized safety and performance standards established by the Automotive Lift Institute (ALI). Rated as a Best-in-Class Professional Performance Lift, this model delivers the ideal balance of durability, performance, quality components, and overall value, making it an excellent choice for servicing cars, SUVs, light- and medium-duty trucks, commercial vans, and today’s heavier electric vehicles (EVs).
(Check individual lift specifications for height requirements, installation details, and recommended applications. Always use extra caution when lifting heavy front-end diesel trucks, as balancing uneven vehicle weight may require additional care.)

The symmetric design positions the vehicle evenly between the columns, allowing for more balanced weight distribution during lifting. This configuration is especially beneficial for trucks, vans, longer wheelbase vehicles, and EVs with heavier battery packs, as it provides improved stability and equal lifting support from front to rear. Symmetric lifts are also ideal for shops primarily servicing larger or heavier vehicles where maximum lifting balance and support are important.

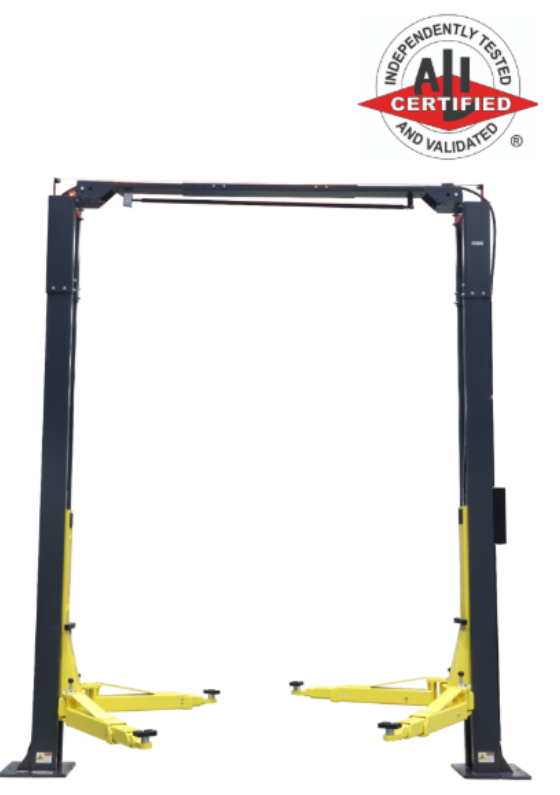

ALI Certification provides added confidence that this lift has been independently tested and validated to meet strict industry safety and construction standards. Combined with heavy-duty steel construction and premium components, the PV10PX is designed for dependable long-term professional use.

While vehicle lifts may appear intimidating due to their size and weight, operation becomes straightforward once the proper concrete and anchoring requirements are met. Installation can be completed by a qualified installer or by the customer. We recommend consulting a concrete flooring professional, as this lift requires a minimum 4" concrete slab with a 3,000 PSI rating.

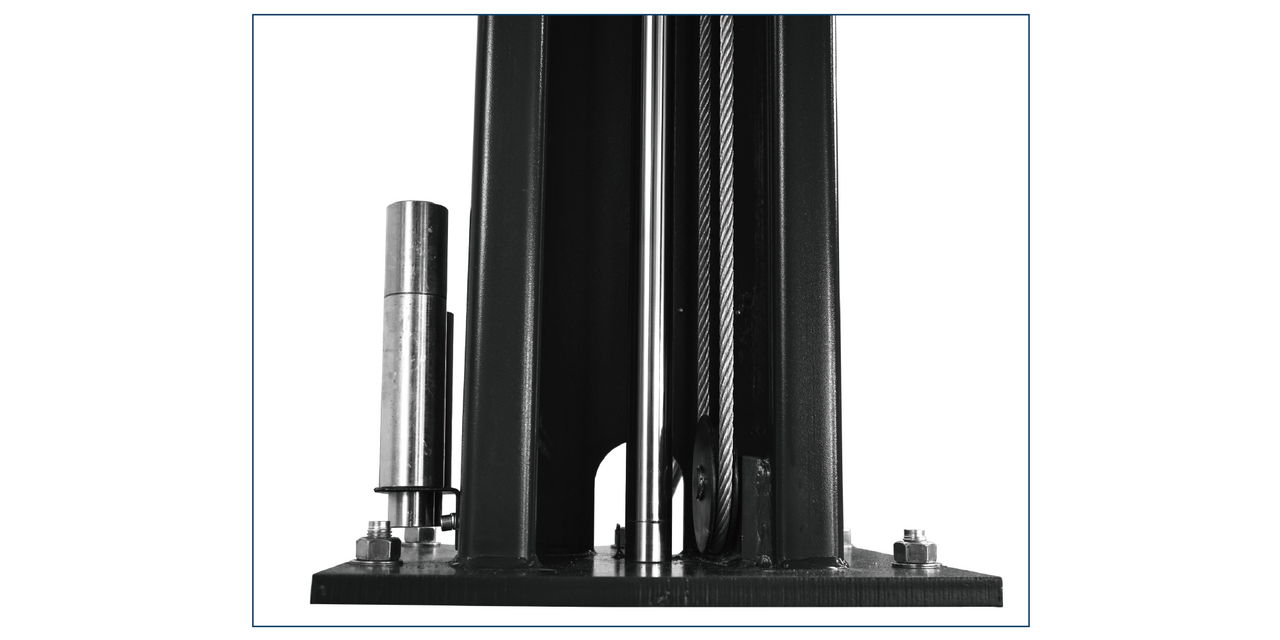

The CAE10K-2OH-3S3-T2OH-2 features a proven dual-cylinder hydraulic lifting system, high-quality cables, and a convenient Single-Point Lock Release that can be mounted on either the left or right column. The included Certified 220-Volt power unit can also be configured on either side for installation flexibility.

Extended Height, offering 22 inches of added overall height and lifting clearance. The taller setup is ideal for servicing high-roof cargo vans, lifted trucks, commercial vehicles, and customers looking for increased under-vehicle working space. It also provides added versatility for shops with higher ceilings that want improved overhead clearance and maximum lifting capability.

At Canadian Auto Equipment.ca, our knowledgeable and dedicated Customer Care team is ready to assist you every step of the way. Contact us today and let us help you find the right ALI Certified lift for your shop or garage.
