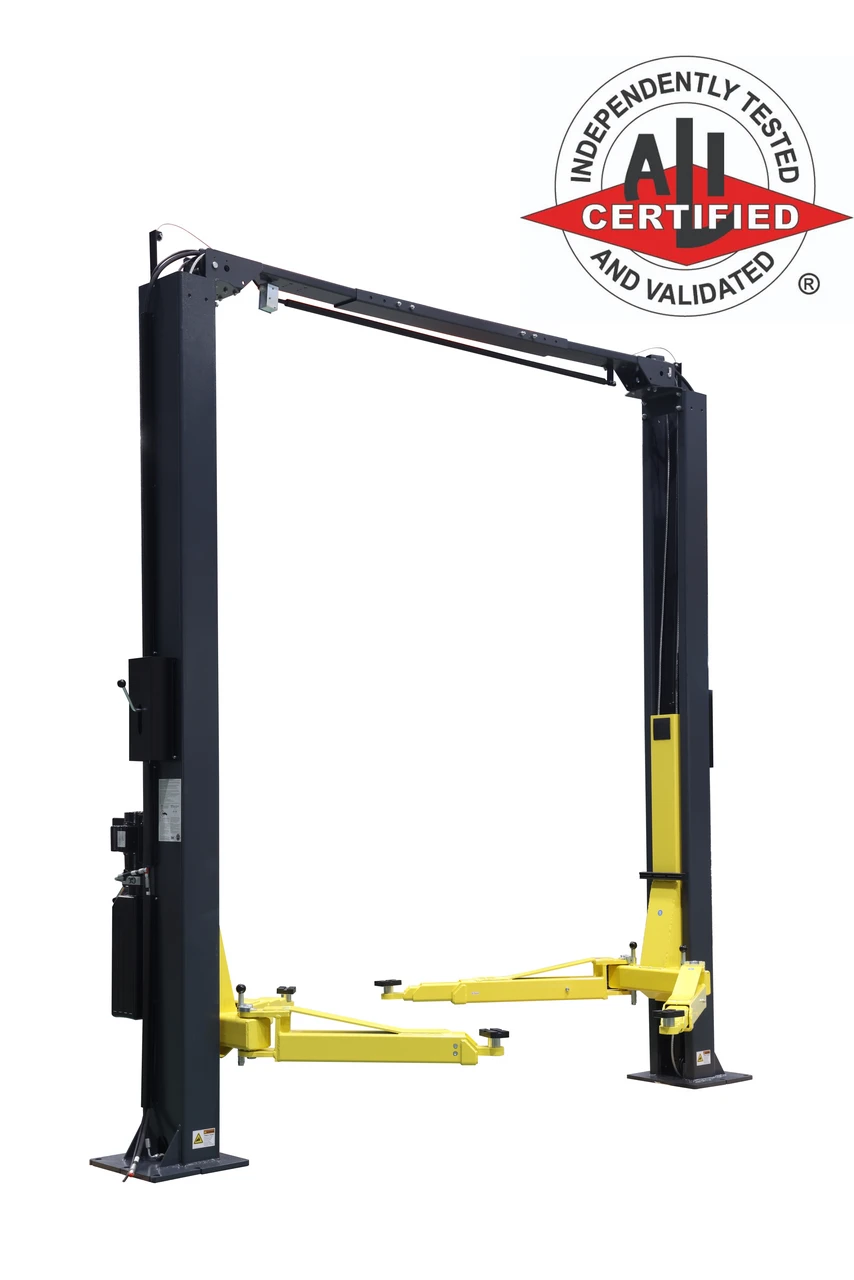

2 Post Overhead ALI Standard Height Symmetric Car Lift- CAE10K-2OH-3S3
SKU:
CAE10K-2OH-3S3
Shipping:
Calculated at Checkout
MSRP:
C$6,495.00
C$6,995.00
C$5,595.00
(You save
C$900.00
)
The Canadian Auto Equipment CAE10K-2OH-3S3 ALI Certified Symmetric 2-Post Overhead Lift is a professional-grade lifting solution designed for shops requiring dependable performance, exceptional stability, and the versatility to service a wide range of vehicles. With a 10,000 lb lifting capacity and ALI Certification, this lift meets recognized safety and performance standards established by the Automotive Lift Institute. The symmetric design positions the vehicle evenly between the lift columns, providing balanced weight distribution and equal lifting support from front to rear. This configuration is especially beneficial for larger vehicles including trucks, commercial vans, longer wheelbase vehicles, and modern electric vehicles with heavier battery systems. Built with heavy-duty steel construction, a proven dual-cylinder hydraulic system, high-quality cables, and a convenient single-point lock release, the CAE10K-2OH-3S3 delivers reliable operation for professional service environments. The standard height design requires only a 12 ft ceiling, making it an excellent choice for automotive shops and garages with limited overhead space. Proper installation requires a minimum 4" concrete slab rated at 3,000 PSI.
- ALI Certified to meet recognized automotive lift safety and performance standards.
- 10,000 lb lifting capacity supports cars, SUVs, light and medium-duty trucks, commercial vans, and EV applications.
- Symmetric design provides balanced vehicle positioning and improved lifting stability.
- Ideal for larger vehicles, longer wheelbases, trucks, and heavier EV platforms.
- Standard height configuration fits shops and garages with 12 ft ceiling requirements.
- Dual-cylinder hydraulic lifting system provides smooth and dependable lifting performance.

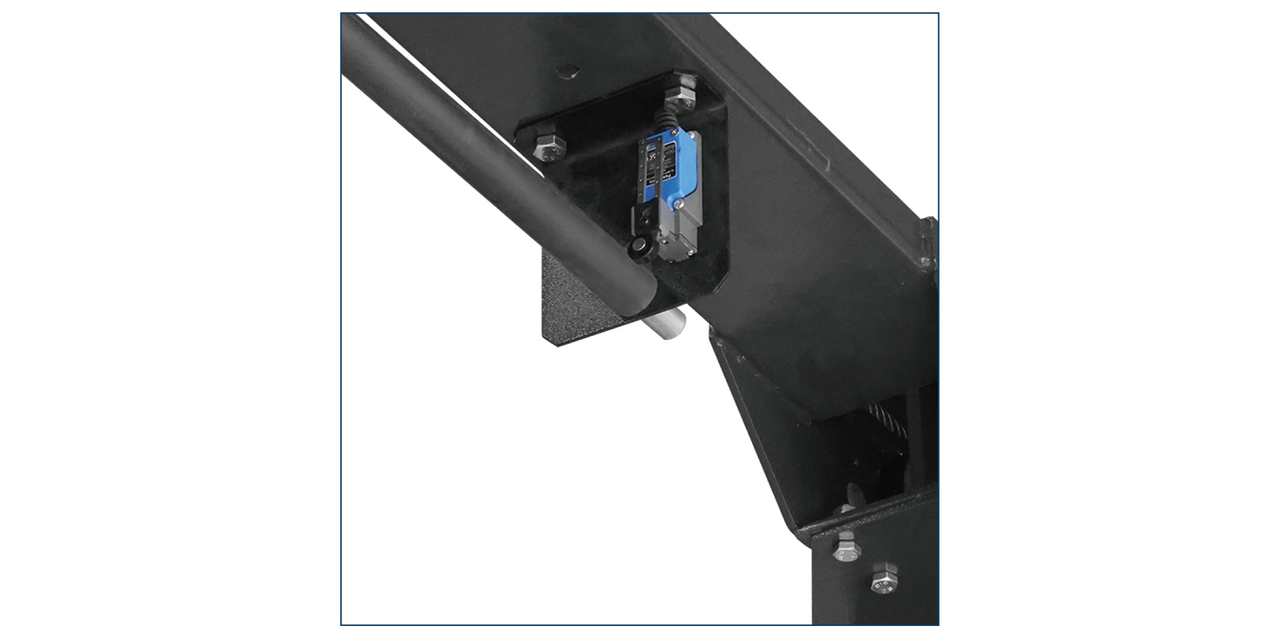

- Single-point lock release system can be mounted on either the left or right column.
- Certified 220V power unit can be configured on either side for installation flexibility.
- Heavy-duty steel construction and premium components provide long-term professional durability.
- Requires a minimum 4" concrete slab with a 3,000 PSI rating for proper installation.
- Designed for professional repair facilities servicing a wide range of vehicle types.
Technical Specifications
| Specification | Details |
| Model | CAE10K-2OH-3S3 |
| Lift Capacity | 10,000 lbs |
| Certification | ALI Certified |
| Max Rise From Ground | 73" Without Adapters / 79" With Adapters |
| Lifting Range | 68.7" |
| Lowest Clearance From Ground | 4.05" |
| Narrow Drive-Thru Clearance | 100.1" |
| Narrow Overall Width | 140.43" |
| Narrow Width Inside Columns | 111.42" |
| Medium Drive-Thru Clearance | 106" |
| Medium Overall Width | 146.34" |
| Medium Width Inside Columns | 117.32" |
| Wide Drive-Thru Clearance | 111.9" |
| Wide Overall Width | 152.24" |
| Wide Width Inside Columns | 123.23" |
| Front Arm Reach | 19.3" - 41.85" |
| Rear Arm Reach | 37.2" - 60" |
| Standard Overall Height | 143.7" / 11.97 ft |
| Standard Ceiling Height Requirement | 144" / 12 ft |
| Width Arms Open Setting | 124" |
| Width Arms Centered | 23.5" |
| Maximum Load Per Arm | 2500 lbs |
| Shipping Dimensions | 142" × 22.5" × 38" |
| Shipping Weight | 1900 lbs |
