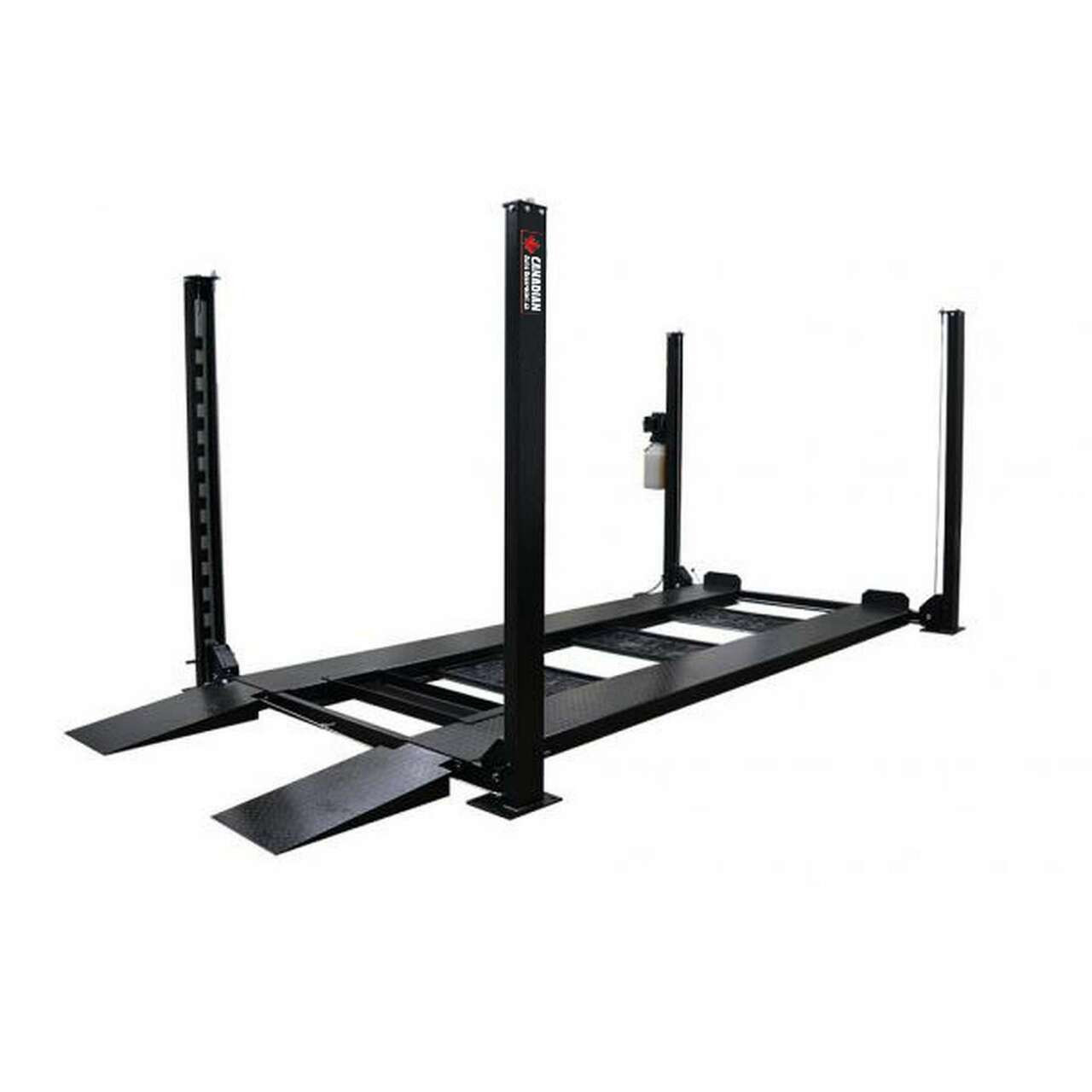

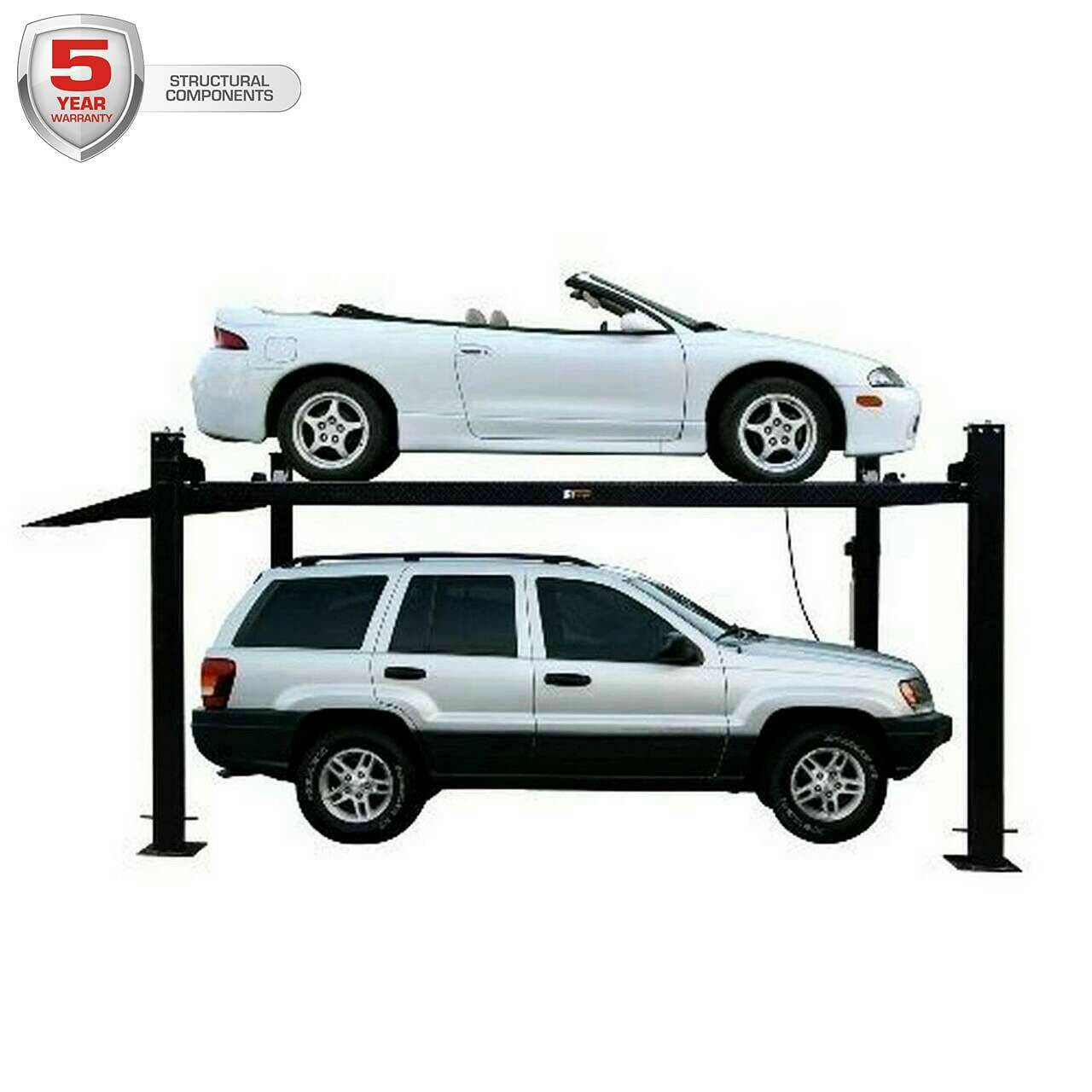

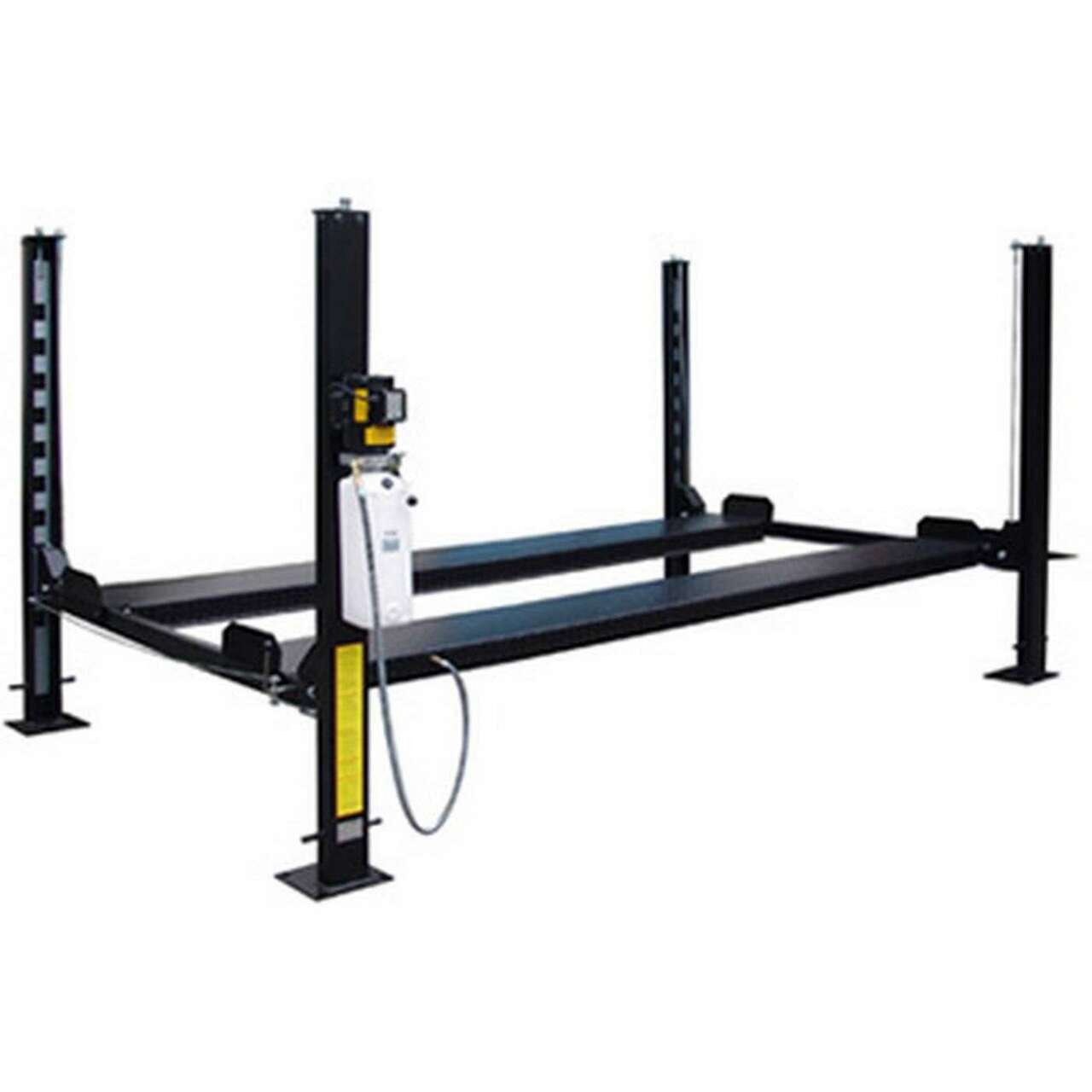

Canadian Auto Equipment CAE-8000SD 4 Post Storage Lift (Standard) - Western Canada Only
The Canadian Auto Equipment CAE-8000SD 4 Post Storage Lift features the upgraded lock ladder system, providing one of the safest and most adjustable locking systems available for four post lifts. Unlike older welded locking systems, the adjustable lock ladder allows users to select multiple runway locking positions and achieve the ideal lifting height for their vehicle storage needs.
Designed for reliable vehicle storage and garage organization, the CAE-8000SD combines heavy-duty construction, simple operation, and dependable performance. With no anchoring required*, optional caster wheel compatibility, and an optional jack tray available, this four post lift provides a practical storage solution for home garages and automotive enthusiasts throughout Western Canada.
Key Features
- New adjustable lock ladder design with multiple runway locking positions.
- Two-position locking mechanism for added security.

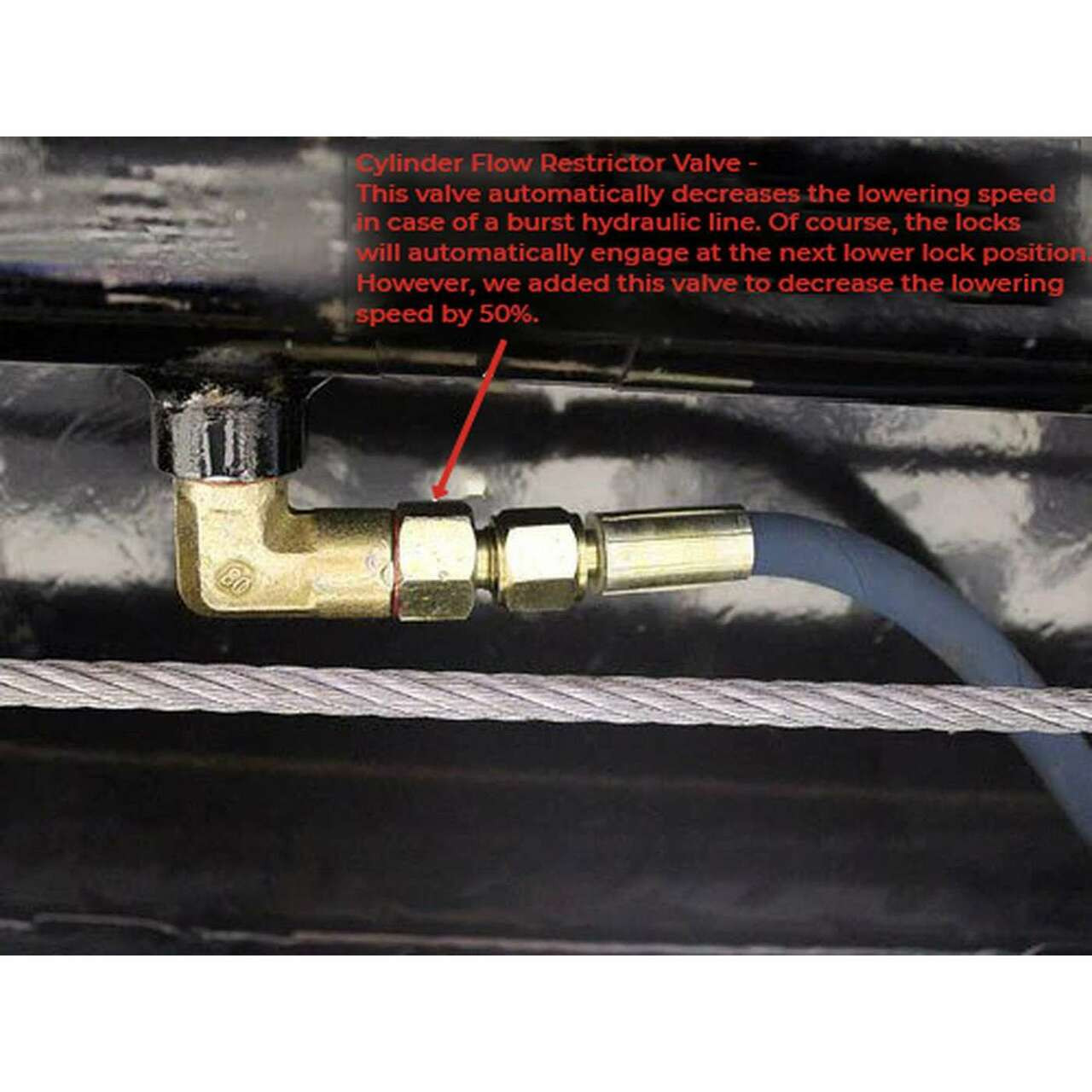

- Flow restrictor valve for controlled lowering operation.
- Grease fittings for easier maintenance and lubrication.

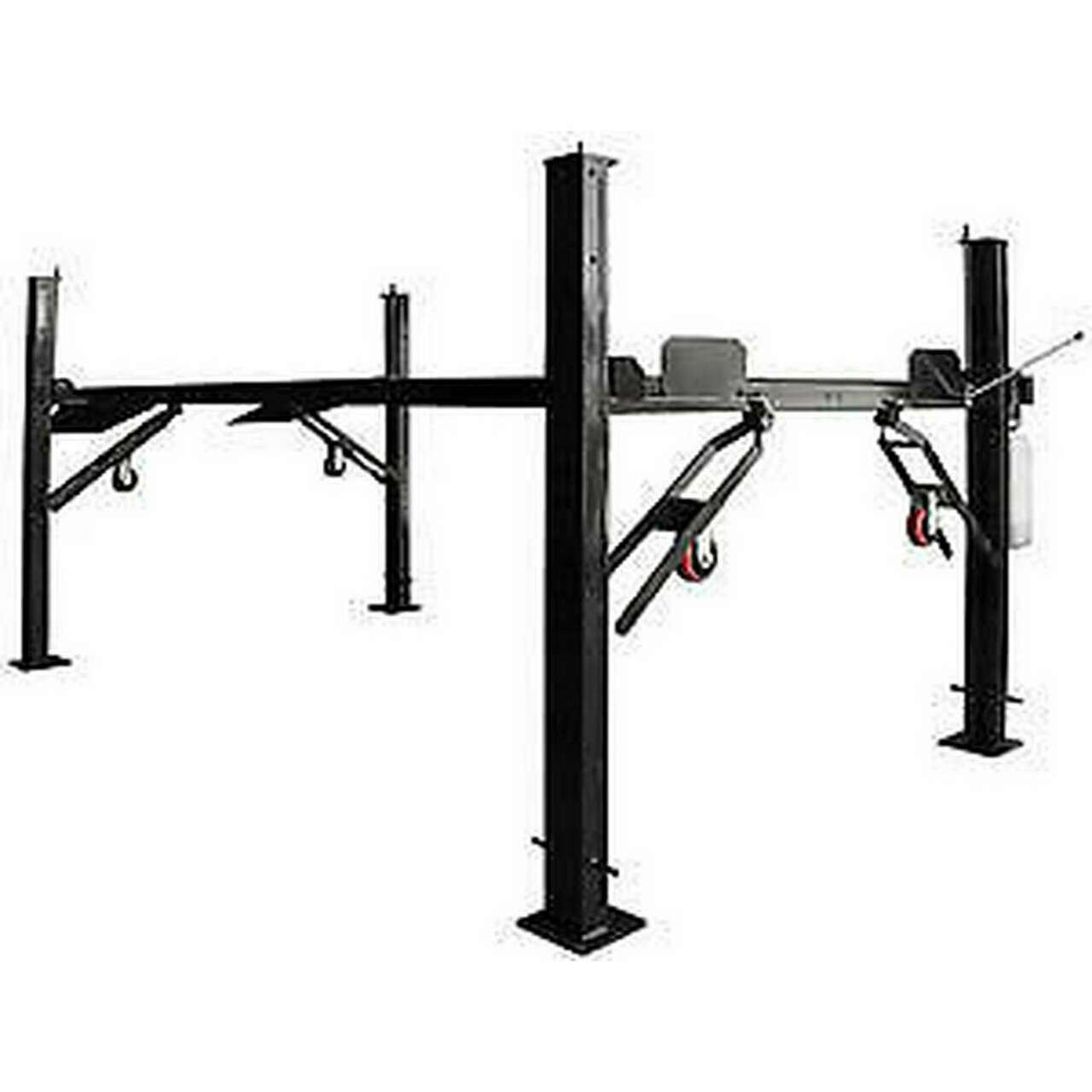

- Optional easy-roll caster wheel kit available for increased portability.

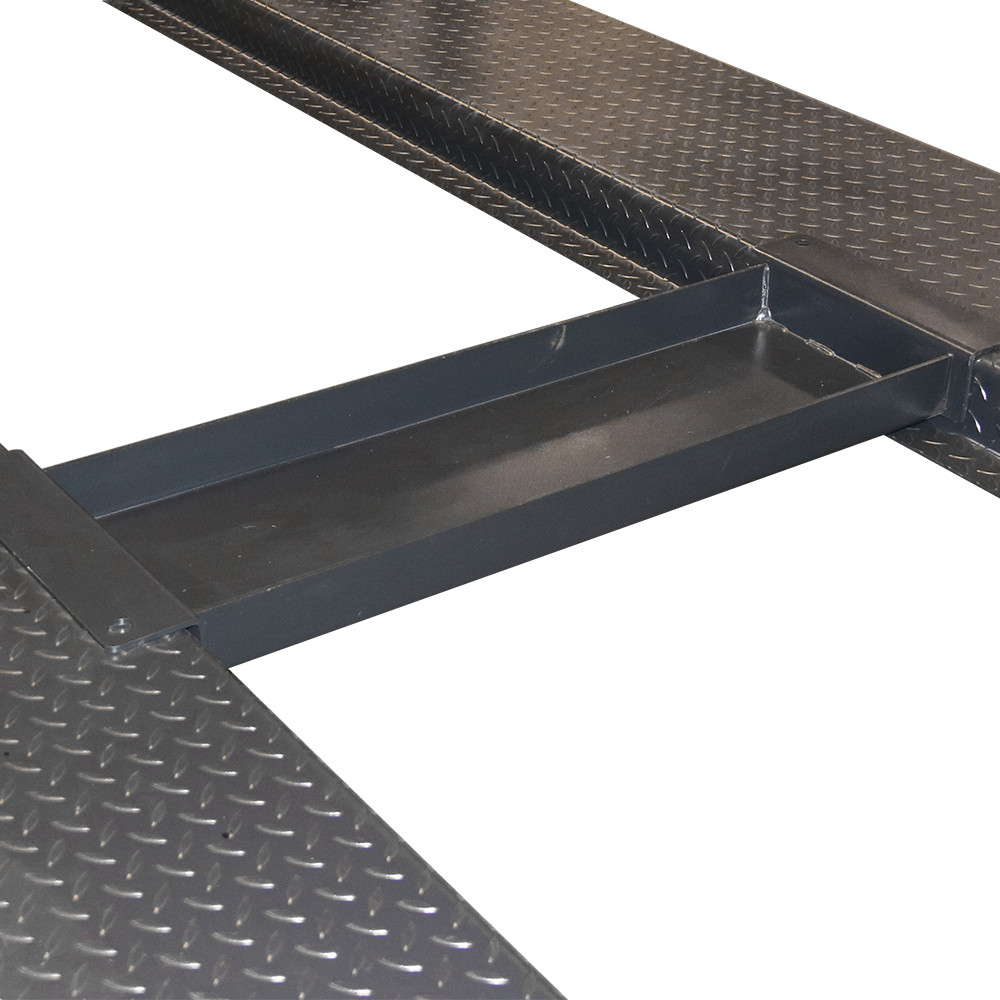

- Optional jack tray available for servicing vehicles while elevated.

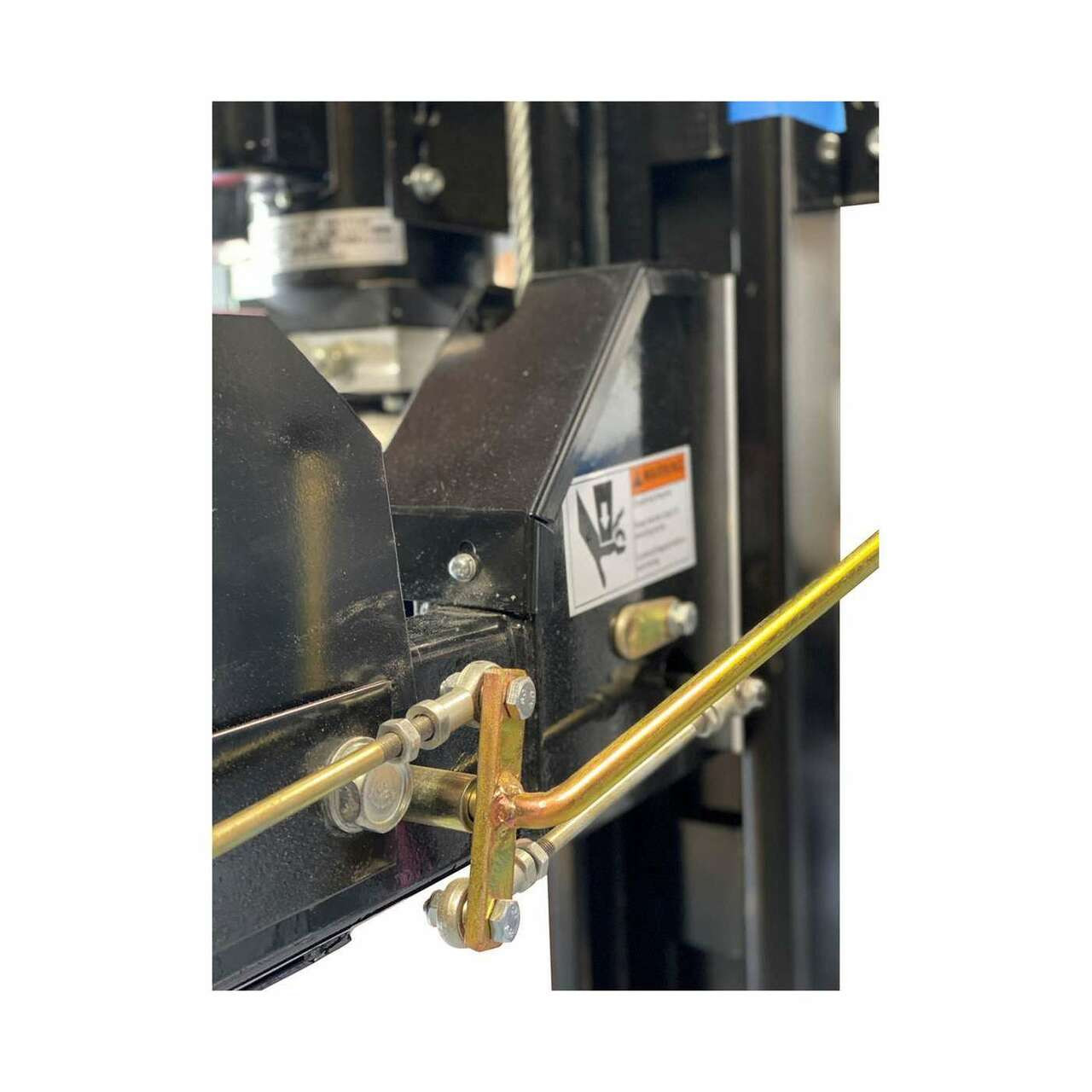

- Single-point lock release system for convenient operation.
- Anchoring is not required for normal operation.*
- Does not include drip trays.
*If the CAE 4 Post Storage Lift is not anchored to the floor, the lift may experience slight movement. This movement does not compromise the stability or structural integrity of the lift.
| Model | CAE-8000SD (8000 LB 4 Post Standard) |
| Capacity | 8,000 LB |
| Shipping Weight | 1,720 LB |
| Oil Requirements | 3-5 Gallons AW32 |
| Power Unit - Motor | 110 Volt |
| Lifting Height (Top of Runway) | 72" |
| Clearance (Under Runways at Top Lock) | 67.5" |

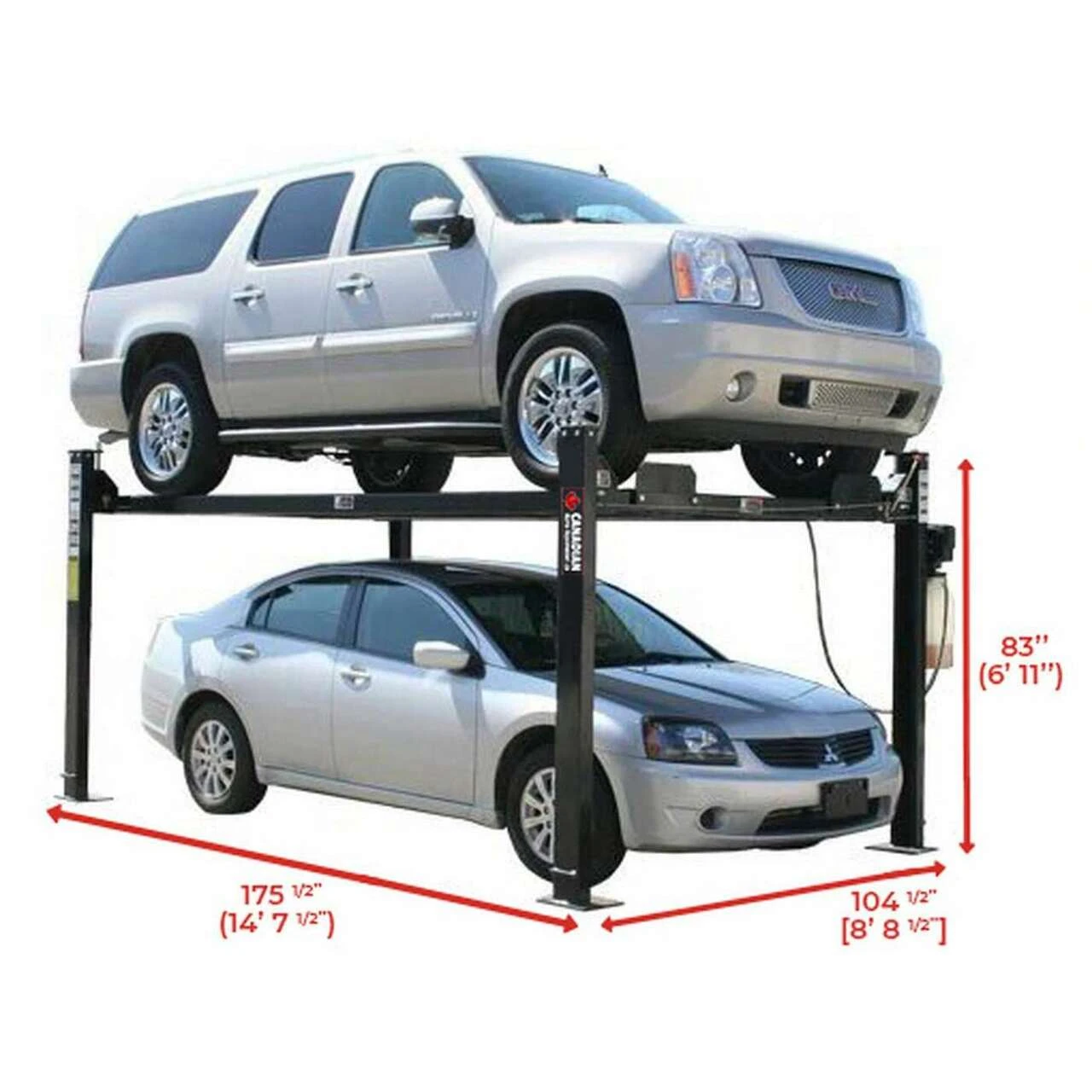

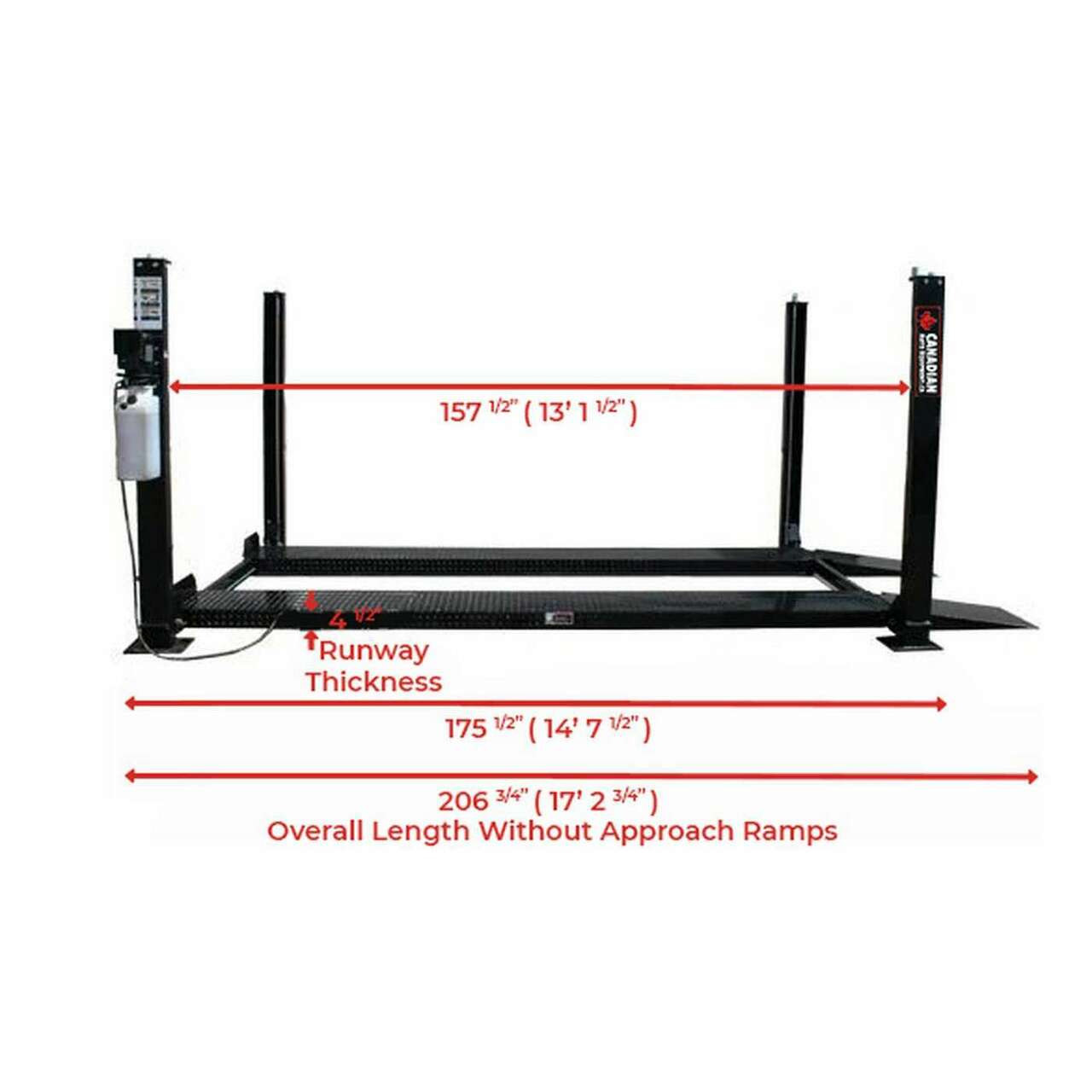

| Overall Length (With Approach Ramps) | 207.5" |
| Overall Length (Without Approach Ramps) | 175.5" |
| Overall Width (Without Motor) | 104.375" |
| Overall Width (With Motor) | 114" |
| Column Height | 83" |
| Approach Ramp Length | 36.75" |
| Runway Width | 18.25" |
| Runway Length | 165.5" |
| Runway Thickness | 4.5" |
| Distance Between Runways | 37.375" |
| Column Size | 6.25" x 3.375" |
| Clearance Between Columns | 94.5" |
| Length Between Columns | 157.5" |
| Column Base | 9.625" x 11.5" |
| Drive Through Clearance (Outside to Outside of Tire) | 80.5" |
| Cable Diameter | 0.350" |
| Steel Gauge | 6 Gauge (0.1875" / 3/16" / 4.75mm) |
| Locking Heights / Positions (+/- 2") | 24", 30", 36", 42", 48", 54", 60", 66", 72" |
- Easy Roll Caster Wheel Kit
- Jack Tray
A four post lift from Canadian Auto Equipment provides a convenient solution for vehicle storage, maintenance, and garage organization. Many four post lifts can be equipped with an optional caster kit for portability or permanently anchored to the floor for a more permanent installation.
Canadian Auto Equipment four post lifts are designed to make vehicle storage easier while providing additional functionality. Optional jack trays allow customers to perform vehicle servicing while elevated, while the included 110 volt motor eliminates the need for specialized electrical wiring during installation.
Four post lifts make vehicle loading and positioning simple. Unlike two post lifts, operators can easily drive onto the runways without needing to exit the vehicle and position lifting arms manually. This makes four post lifts an excellent choice for long-term storage and vehicles with low ground clearance.
