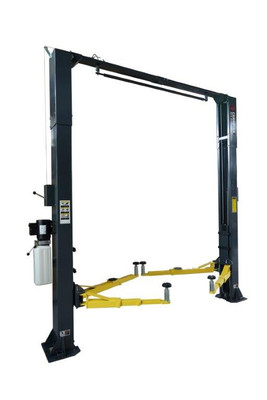

The Canadian Auto Equipment CAE-9KOP is a professional-grade 9,000 lb 2 Post Overhead Automotive Lift designed for customers who require maximum lifting capacity at an excellent value.
Featuring a single-point lock release system, asymmetric arm design, and clear floor configuration, the CAE-9KOP provides reliable vehicle access and efficient operation for automotive service applications. This lift can be installed in most garages with a minimum ceiling height of 11' 10" or higher.
Key Features
- 9,000 lb lifting capacity.
- Asymmetric arm design for improved vehicle positioning.
- Dual hydraulic chain-drive cylinders.
- Single-point lock release system.
- Automatic arm restraints.
- Clear floor design for improved workspace access.
- Secondary lock mechanism for added safety.
- Powder coat finish for durability.
- Light commercial grade construction.
- Shut-off bar included.
- Mounting hardware included.
- Includes free 8-piece truck adapter set with screw pad adapters.
| Model | CAE-9KOP (9000LB 2 Post Overhead Lift) |
| Capacity | 9,000 LB |
| Shipping Weight | 1,450 LB |
| Oil Requirements | 3-5 Gallons AW32 |
| Power Unit - Motor | 220 Volt |
| Maximum Lifting Height | 74" (6' 2") |
| Overall Height | 142" (11' 10") |
| Overall Width | 134" (11' 2") |
| Width Between Posts | 109 3/4" (9' 1") |
| Drive Thru Width | 92 1/2" (7' 8") |
| Base of Lift | 13 1/2" x 18" |
| Minimum Pad Height | 4" |
| Lifting / Lowering Time | 55 Seconds / 45 Seconds |
| Carriage Thickness of Steel | 6mm |
| Motor Power | 2.2kW |
| Cable Diameter | 0.375" |
**Color subject to change without notice**
