CAE 3664PWB Self-Calibrating Pneumatic "HD" 3D Computer Wheel Balancer w/LED Display (110V/60HZ/1PH) Automatic Entry and pneumatic shaft

CAE 3664PWB Self-Calibrating Pneumatic "HD" 3D Computer Wheel Balancer w/LED Display (110V/60HZ/1PH) Automatic Entry and pneumatic shaft

SKU:

CAE-3664PWB

Condition:

New

Shipping:

Calculated at Checkout

MSRP: C$8,315.00

C$8,315.00

C$5,295.00

(You save C$3,020.00 )

Description
Shipping & Returns
Documents
Commercial Financing

Description

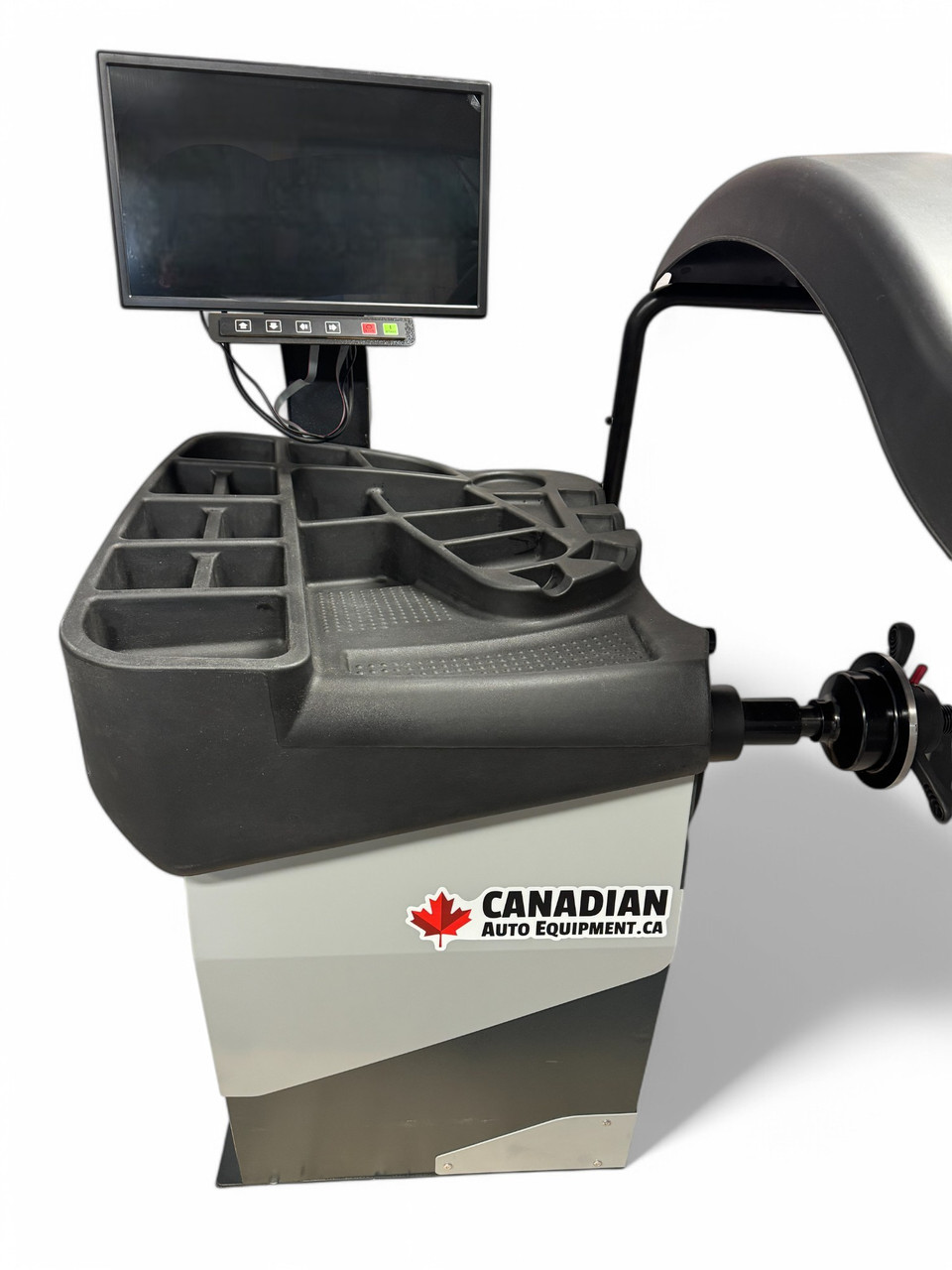

The Canadian Auto Equipment CAE-3664PWB Self-Calibrating "HD" 3D Computer Wheel Balancer is a professional-grade balancing solution designed for accuracy, efficiency, and ease of use. Featuring automatic data entry, pneumatic shaft technology, self-calibration, and advanced static and dynamic balancing programs, the CAE-3664PWB delivers reliable performance for busy tire service environments.

Key Features

Advanced computerized wheel balancing system with automatic data entry for faster setup and improved workflow.
Pneumatic shaft system securely centers and locks wheels in position without requiring a quick release nut or secondary locking mechanism.
Self-calibration capability helps maintain consistent balancing accuracy over long-term operation.
Supports static and dynamic balancing programs for a wide range of passenger vehicle and light truck applications.
Automatic weight positioning helps simplify wheel balancing procedures and improve efficiency.
First-time positioning brake system assists with accurate wheel weight installation.
Sonar laser balance technology provides additional measurement accuracy and improved balancing results.

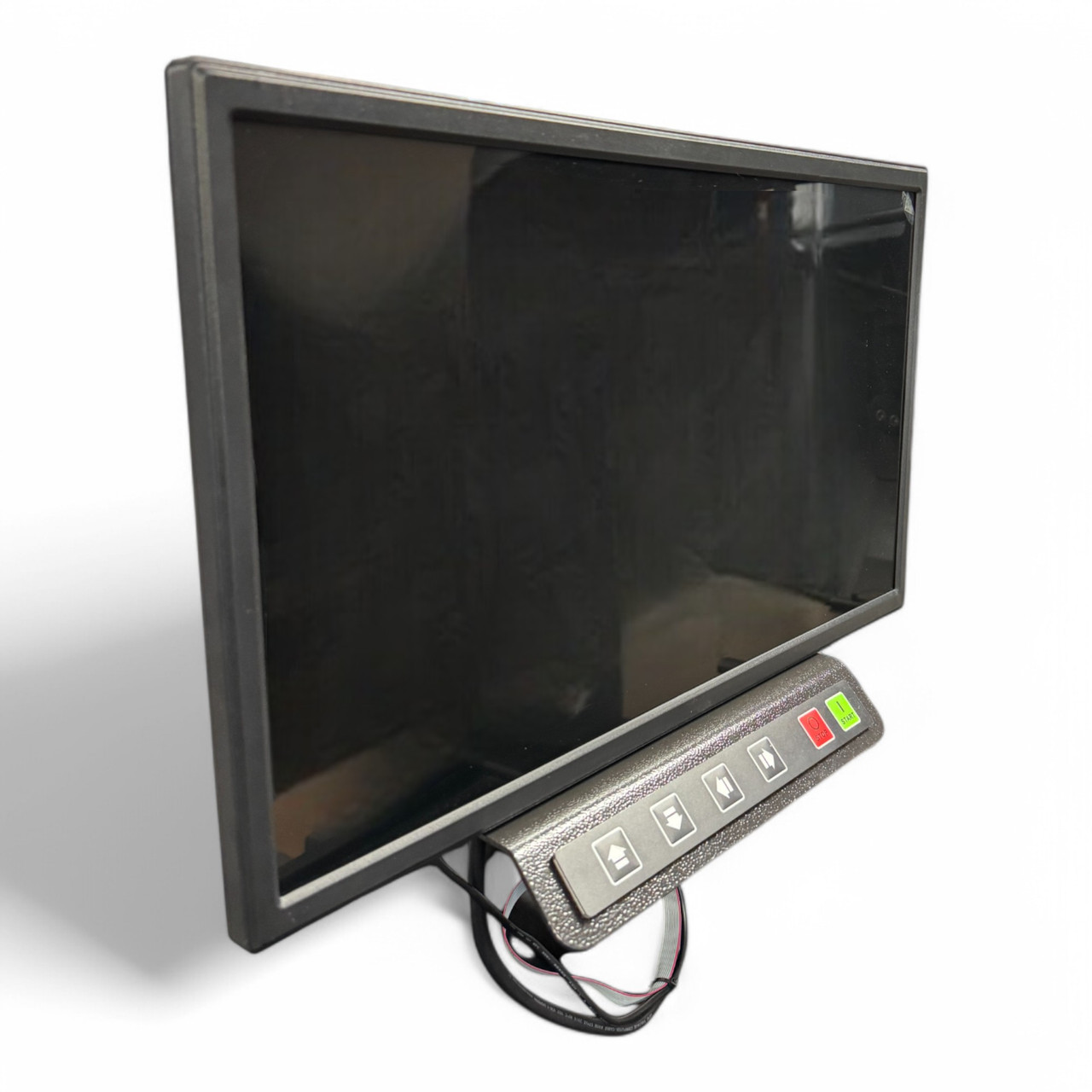

LCD display provides clear operating information and easy-to-follow controls.
Compatible with wheels from 10" to 30" and up to 154 lbs for versatile service capability.
Requires a 20 gallon compressor or larger and includes a pressure regulator to prevent exceeding 150 PSI.
Designed for professional tire shops requiring dependable, accurate, and user-friendly equipment.

Technical Specifications

Specification	Details
Model	CAE-3664PWB
Maximum Tire Diameter	53"
Rim Sizes (Cars and Light Trucks)	10" - 30"
Rim Width	1.5" - 20"
Shaft Size	40 mm
Maximum Wheel Weight	154 lbs
Balancing Speed	200 RPM
Automatic Data Entry	Yes
EALU Balance Function	Yes
Diagnostic Mode	Yes
Sonar (Laser Balance)	Yes
Truck Adapter Set	Optional
Power Supply	110V 1 Phase
Motor	¼ HP
Display	LCD Screen
Accuracy	±1g
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Warranty	2 Year Structural, 1 Year Non-Structural, 90 Days Wear & Tear
Shipping Weight	360 lbs
