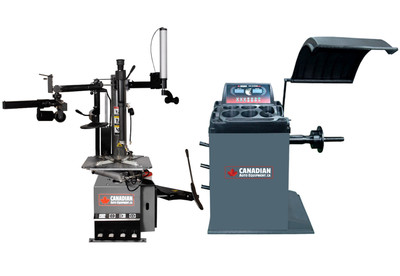

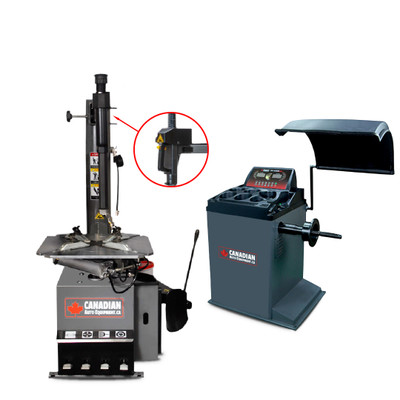

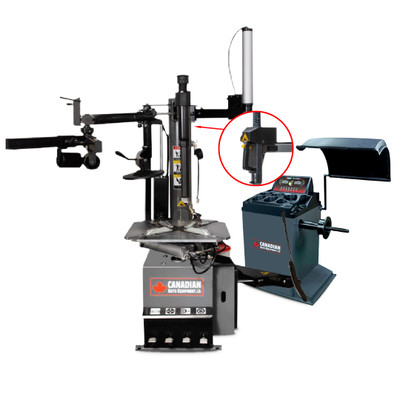

CAE-2725EZ Tire Changer with EZ Arm & CAE-3019 Wheel Balancer with Manual Entry

CAE-2725EZ Tire Changer with EZ Arm & CAE-3019 Wheel Balancer with Manual Entry

SKU:

CAE-2725EZ TC & CAE-3019WB

Condition:

New

Shipping:

Calculated at Checkout

MSRP: C$4,195.00

C$3,995.00

(You save C$200.00 )

Description
Shipping & Returns
Documents
Commercial Financing

Description

The Canadian Auto Equipment CAE-2725EZ Tire Changer is a professional tire service machine designed for shops requiring reliable performance, versatility, and ease of use. Featuring an integrated bead blasting system, electric/pneumatic wheel clamping, EZ assist arm, and a rigid cylindrical vertical tower design, the CAE-2725EZ can service tires up to 43" in diameter and rims from 10" to 26". With its powerful 5,900 LB pneumatic bead breaker and advanced clamping system, this tire changer is built to handle demanding tire service applications.

Key Features

Professional tire changer with integrated bead blasting system.
EZ assist arm included for easier tire servicing.
Accommodates tire diameters up to 43".
Handles internal rim sizes from 10" - 26".
Handles external rim sizes from 12" - 24".
Electric/pneumatic wheel clamp system with integrated bead blasting tank.
Powerful 5,900 LB pneumatic bead breaker.
Self-centering four-jaw system with double pneumatic cylinders.
Three-position jaw clamps for multiple wheel applications.
Swing horizontal arm with Ø41mm hexagon shaft.
Mechanical locking and vertical adjustment of mounting arm.
Interchangeable plastic inserts for rim protection.
Clockwise and counterclockwise turntable rotation powered by electric motor.
Complete with lubrication filter and pressure regulator.

CAE-2725EZ TC Technical Specifications

Specification	Details
Model	CAE-2725EZ TC
Rims	Steel, Aluminum, Alloy
External Locking Rim Dimension	12" - 24"
Internal Locking Rim Dimension	10" - 26"
Bead Blaster	Yes
Maximum Tire Diameter	43"
Operating Voltage	110V 1Ph, 15 Amps
Maximum Wheel Width (Bead Breaker)	3" - 16"
Air Pressure	100 - 140 PSI
Maximum Inlet Pressure	140 PSI
Shipping Weight	640 LB Crate
Table Motor	1 HP
Bead Breaker	Pneumatic, 5,900 LB Force
Oiler, Filter, Regulator	Included
Soap Dispenser	Included
Warranty	1 Year Limited Warranty
Rim Protectors	4 Black Plastic Rim Protectors Included

Included Features

EZ assist arm included.
Integrated bead blasting system.
Protection kit for bead breaker shoe, demounting head, and clamping jaws.
Four black plastic rim protectors.
Lubrication filter and pressure regulator.
Tire inflation unit mounted on column with pressure gauge and release button.

Optional Accessories

ATV Adapter Set
Motorcycle Adapter Set
Tire Tool (20" or 24")
Plastic Protector (Duck) Head
Manual Bead Roller Arm
Left Hand Press Arm
Right Hand Press Arm

The Canadian Auto Equipment CAE-3019WB Wheel Balancer is a reliable and accurate computer wheel balancing solution designed for automotive shops requiring dependable performance and ease of operation. Considered one of the best-selling models in the Canadian Auto Equipment wheel balancer lineup, the CAE-3019WB combines simple plug-and-play operation with advanced features including self-diagnosis, automatic data entry, static and dynamic balancing, and EALU balance functions. Capable of balancing wheels up to 143 LB, this wheel balancer is an excellent choice for professional tire service environments.

CAE-3019 Wheel Balancer Key Features

Economical, dependable, and highly accurate computer wheel balancer.
Simple plug-and-play operation with advanced balancing capabilities.
Automatic positioning for weight placement.
Automatic start/stop operation when hood is lowered or raised.
Automatic and pedal-operated brake system.
Static and dynamic balancing modes.
Rapid optimization (OPT) function.
Self-diagnosis system for easier troubleshooting.
EALU balance function included.
First-time positioning brake.
Displays measurements in grams or ounces and millimeters or inches.
Steel cabinet construction for durability.

CAE-3019WB Technical Specifications

Specification	Details
Model	CAE-3019WB
Maximum Tire Diameter	43"
Rim Sizes (Cars and Light Trucks)	10" - 26"
Rim Width	1 1/2" - 20"
Shaft Size	40mm
Maximum Wheel Weight	143 LB
Balancing Speed	150 R.P.M.
Automatic Data Entry	Yes
EALU Balance Function	Yes
First-Time Positioning Brake	Yes
Truck Adapter Set	Optional
Warranty	1 Year Limited Warranty
Shipping Weight	350 LB
Power Supply	110V 1Ph
Motor	1/4 HP
Display	Standard or Metric
Accuracy	(+/-) 1 g
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes

Included Features

Steel cabinet construction.
Automatic start/stop operation.
Automatic and pedal-operated braking system.
Static and dynamic balancing capability.
Self-diagnosis system.
EALU balance function.
First-time positioning brake.
Standard and metric display options.

Optional Accessories

Truck Adapter Set
