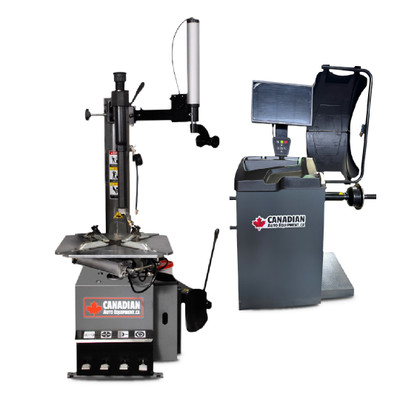

The Canadian Auto Equipment CAE-2725DAA Tire Changer and CAE-3446WB Wheel Balancer Package provides a complete professional tire service solution for automotive shops requiring reliable, accurate, and versatile equipment. This package combines a heavy-duty tire changer with dual assist arms and bead blasting capability, along with a computerized wheel balancer designed for precise and efficient wheel balancing performance. The CAE-2725DAA Tire Changer is designed to service a wide range of passenger vehicles, SUVs, and light trucks with support for tires up to 43" in diameter and rims up to 26". Featuring integrated bead blasting, electric/pneumatic wheel clamping, and left and right-hand assist arms, this tire changer provides the flexibility needed for demanding tire service applications. The CAE-3446WB Wheel Balancer provides accurate wheel balancing performance with automatic data entry, self-calibration, static and dynamic balancing programs, and first-time positioning brake functionality. Together, this package delivers a complete tire service solution for professional automotive repair facilities.
Key Features
- Complete tire service package including the CAE-2725DAA Tire Changer and CAE-3446WB Wheel Balancer.
- Dual left and right-hand assist arms provide improved control and reduce operator effort.
- Integrated bead blasting system delivers powerful air bursts for difficult bead seating applications.
- Compatible with steel, aluminum, and alloy rims.
- Self-centering four-jaw clamping system provides secure and uniform wheel positioning.
- Powerful pneumatic clamping cylinders provide consistent clamping pressure.
- Electric motor-driven turntable supports clockwise and anticlockwise rotation.
- Includes lubrication filter, pressure regulator, soap dispenser, and rim protection kit.
- CAE-3446WB features automatic data entry and first-time positioning brake functionality.
- LCD display provides clear and easy-to-read balancing information.
- Self-calibration capability helps maintain accurate balancing performance.
CAE-2725DAA Tire Changer Technical Specifications
| Specification |
Details |
| Model |
CAE-2725TC |
| Rims |
Steel, Aluminum, Alloy |
| External Locking Rim Dimension |
12"-24" |
| Internal Locking Rim Dimension |
10"-26" |
| Bead Blaster |
Yes |
| Maximum Tire Diameter |
43" |
| Operating Voltage |
110V 1Ph, 15 Amps |
| Maximum Wheel Width (Bead Breaker) |
3"-16" |
| Air Pressure |
100 - 140 PSI |
| Maximum Inlet Pressure |
140 PSI |
| Shipping Weight |
640 LB Crate |
| Table Motor |
1 HP |
| Bead Breaker |
Pneumatic, 5,900 LB Force |
| Oiler, Filter, Regulator |
Included |
| Soap Dispenser |
Included |
| Warranty |
1 Year Limited |
| 4 Black Plastic Rim Protectors |
Included |
CAE-3446WB Wheel Balancer Technical Specifications
| Specification |
Details |
| Model |
CAE-3446WB |
| Max Tire Diameter |
43" |
| Rim Sizes (Cars and Light Trucks) |
10"-36" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max Wheel Weight |
143 LBS. |
| Balancing Speed |
150 R.P.M |
| Automatic Data Entry |
Yes |
| EALU Balance Function |
Yes |
| First-Time Positioning Brake |
Yes |
| Truck Adapter Set |
Optional |
| Warranty |
1 Year Limited |
| Shipping Weight |
275 LBS. |
| Power Supply |
110V 1Ph |
| Motor |
¼ HP |
| Display |
Standard or Metric |
| Accuracy |
(+/-)1 g |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
At Canadian Auto Equipment.ca, our knowledgeable and dedicated Customer Care team is ready to assist you every step of the way. Contact us today and let us help you find the right tire service equipment package for your shop or garage.
